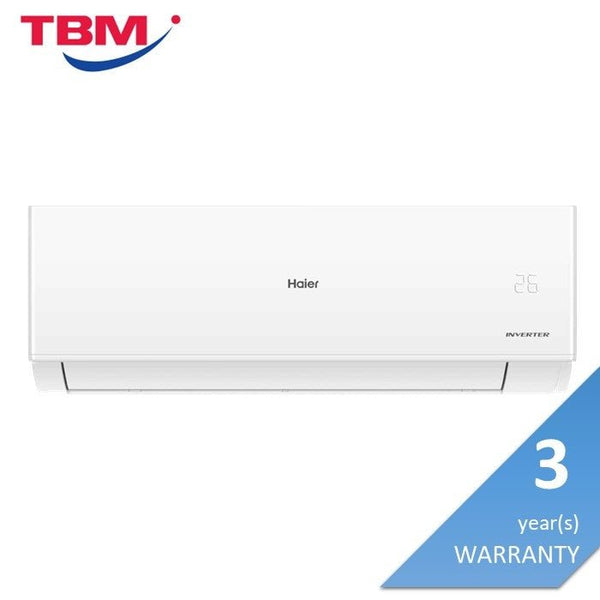

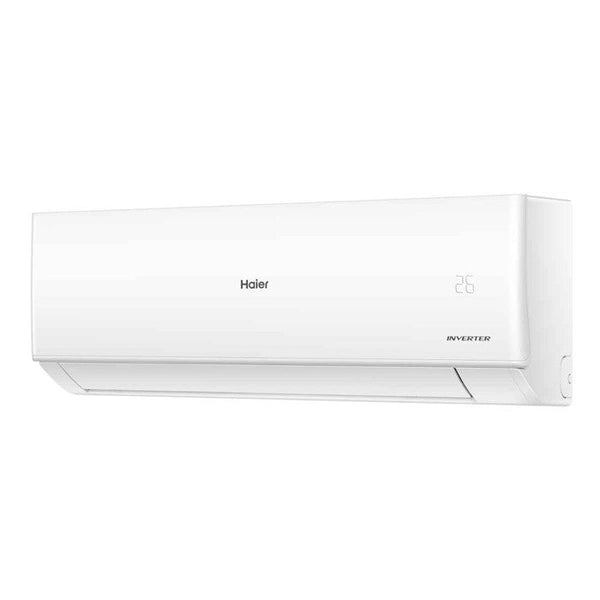

[1.5HP][Inverter] Haier HSU-13VQC22 Air Conditioner UV R32 Ray Inverter 1.5HP

3 Years General Warranty. 10 Years Compressor Warranty.

Air Conditioner

HSU-13VQC22

• UVC Sterilization
• Smart Clean
• Triple Strong Airflow

Specifications

Compressor

• Type: Inverter

Model

• Indoor/Outdoor: HSU-13VQC22

Capacity

• Capacity (W): 3663（1020-4000）
• Capacity (Btu): 12500
• Power input (W) Cooling: 1160
• CSPF: 4.95
• Star Rating: 4
• Running current (A) Cooling: 6.3
• Power supply (Ph/V/Hz): 1/220-240/50
• Air circulation (m³/h): 700
• Moisture removal (10¯³m³/h): 1.6
• Refrigerant: R32
• Refrigerant pipe (mm) Liquid side diameter: 6.35
• Refrigerant pipe (mm) Gas side diameter: 9.52

INDOOR

• Net dimension (mm) W/D/H: 805/200/292
• Package dimension (mm) W/D/H: 874/270/363
• Net weight (kg): 8.4
• Gross weight (kg): 10.5
• Noise [dB(A)] (Hi/Mid/Lo/So): 40/37/33/29

OUTDOOR

• Net dimension (mm): 700/245/544
• Package dimension (mm): 819/320/592
• Net Weight (kg): 20.6
• Gross Weight (kg): 23.0
• Noise [dB(A)]: 51
• Max Pipe Length(m): 15
• Max Pipe Height(m): 10
• Chargless Piping Length(m): 5
• Amount of additional Refrigerant (g): 20
• Amount of Gas(g): 540
• Power Supply: indoor
• Metering Device: capillary tube
