3 Years General Warranty. 5 Years Compressor Warranty.

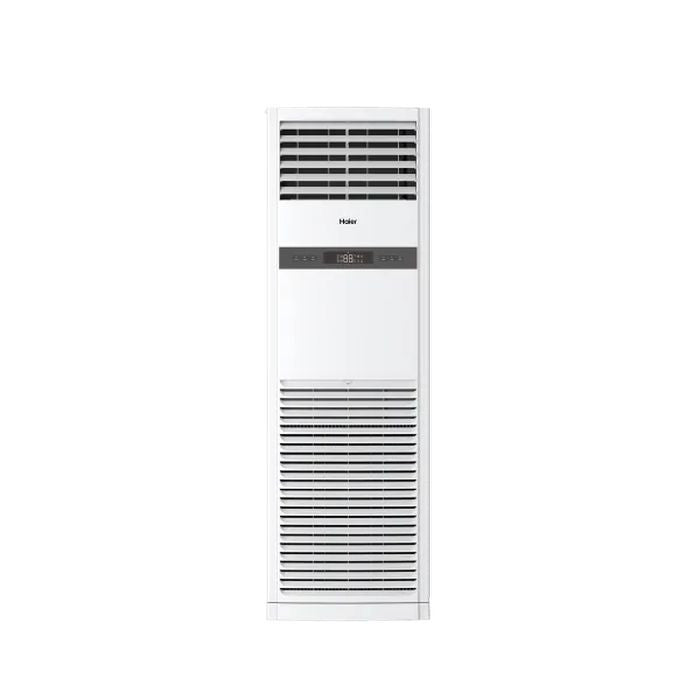

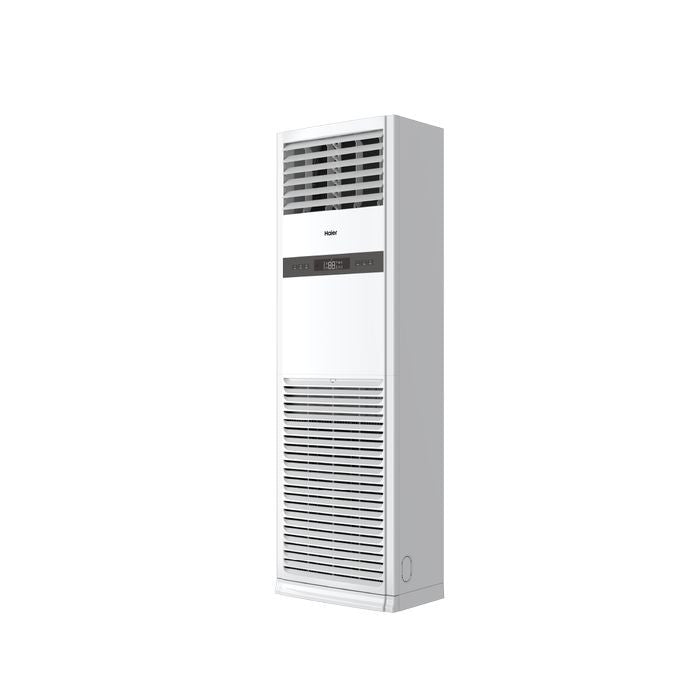

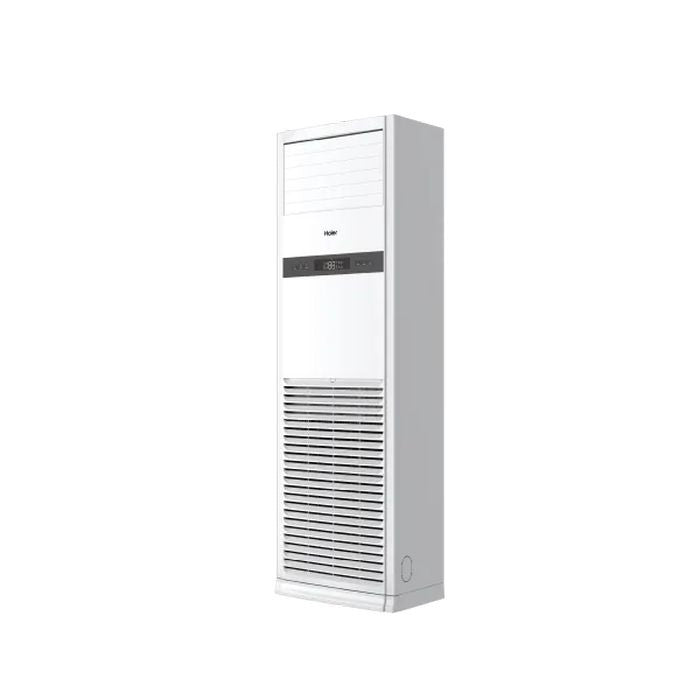

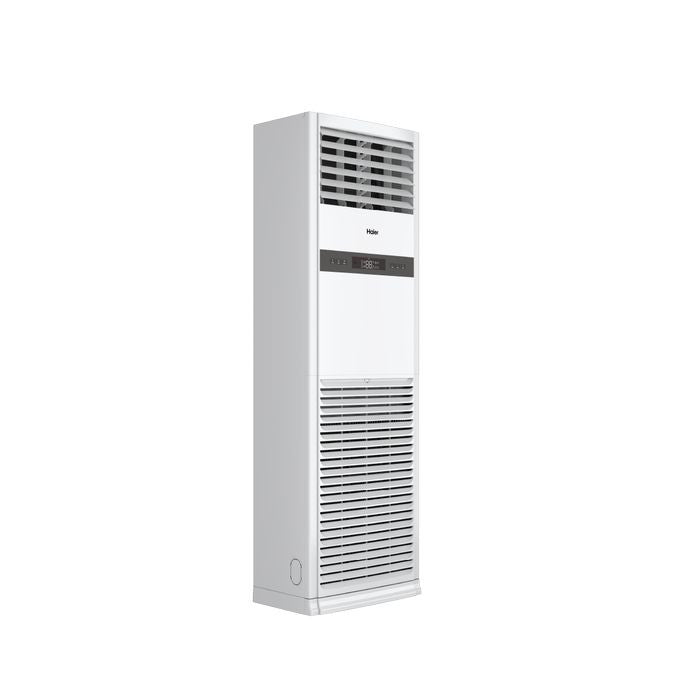

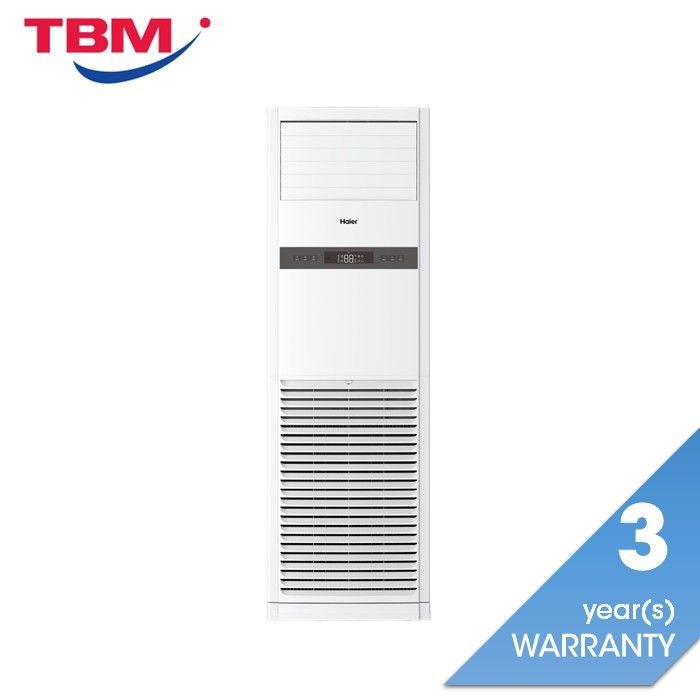

Mini Central Air Conditioner - Floor Standing

HF-30LB03

Highlights

• Turbo Mode
• Wi-Fi Control
• Long Distance Airflow

Specs

• R32/8790/30000/2100

SPECIFICATIONS

Compressor

• Type: Non-Inverter

Model

• Indoor/Outdoor: HF-30LB03

Capacity

• Capacity (W): 8790
• Capacity (Btu): 30000
• Power input (W) Cooling: 2747
• CSPF: 3.4
• Running current (A) Cooling: 12
• Power supply (Ph/V/Hz): 1/220V-240/50
• Air circulation (m³/h): 2100
• Moisture removal (10¯³m³/h): 5.27
• Refrigerant: R32
• Refrigerant pipe (mm) Liquid side diameter: 9.52
• Refrigerant pipe (mm) Gas side diameter: 15.88

INDOOR

• Net dimension (mm) W/D/H: 600/350/1880
• Package dimension (mm) W/D/H: 684/468/2043
• Net weight (kg): 45
• Gross weight (kg): 52
• Noise [dB(A)] (Hi/Mid/Lo/So): 49/47/45/36

OUTDOOR

• Net dimension (mm): 950*370*815
• Package dimension (mm): 1095*480*882
• Net Weight (kg): 57.5
• Gross Weight (kg): 63
• Noise [dB(A)]: 59
• Max Pipe Length(m): 50
• Max Pipe Height(m): 30
• Chargless Piping Length(m): 15
• Amount of additional Refrigerant (g): 45
• Amount of Gas(g): 2200
• Power Supply: indoor/outdoor
• Metering Device: capillary tube
