3 Years General Warranty. 10 Years Compressor Warranty.

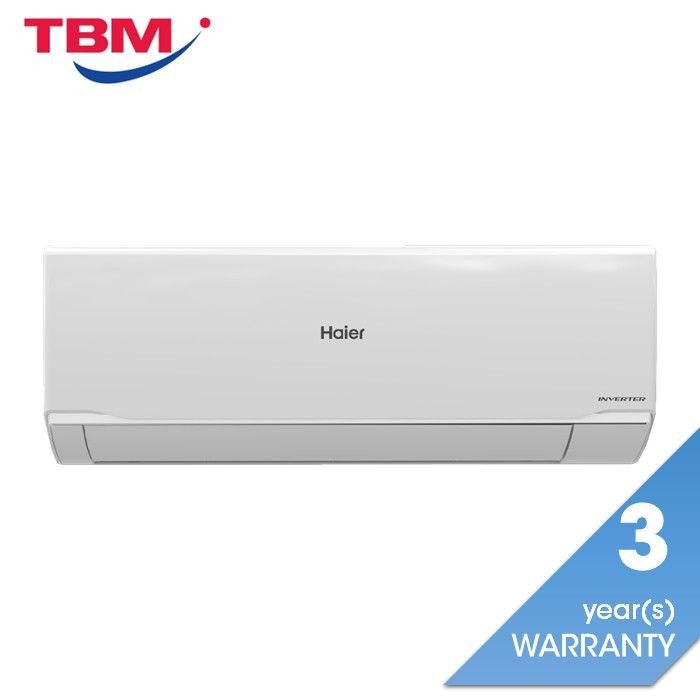

UV Cool Smart + Series

HS-10VRB06

Highlights

• AI ECO
• UVC Sterilization

Specs

BTU/h: 10000 (3800-11000)

Specification

Capacity

• Capacity (W): 2931
• Capacity (BTU): 10000（3800-11000）
• Power input (W): 820
• CSPF: 5.6
• Star Rating: 5
• Running current (A): 3.8
• Power supply (Ph/V/Hz): 1/220-240/50
• Air circulation (m³/h): 680
• Moisture removal (10¯³m³/h): 1.4
• Refrigerant: R32
• Refrigerant pipe (mm): 6.35
• Type: 9.52

INDOOR

• Net dimension (mm): 805/200/292
• Package dimension (mm): 874/270/363
• Net weight (kg): 8.4
• Gross weight (kg): 10.4
• Noise [dB(A)] (Hi/Mid/Lo/So): 40/36/32/28

OUTDOOR

• Outdoor Net dimension (mm): 660/245/463
• Outdoor Package dimension (mm): 767/314/516
• Outdoor Net weight (kg): 18
• Outdoor Gross weight (kg): 19.6
• Noise [dB(A)]: 50
• Max Pipe Length(m): 15
• Max Pipe Height(m): 10
• Chargless Piping Length(m): 5
• Amount of additional Refrigerant (g/m): 20
• Amount of Gas(g): 380
• Power Supply: Indoor
• Metering Device: capillary tube
