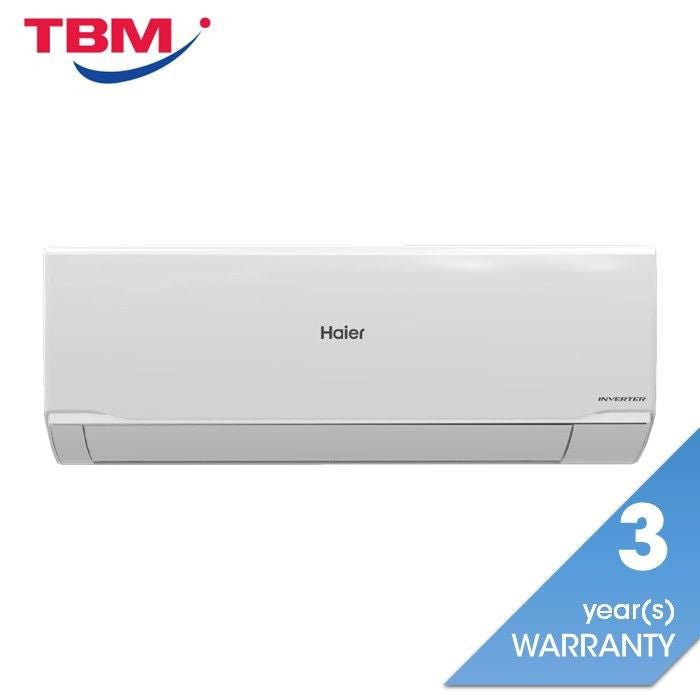

[1.5HP][Inverter] Haier IN:HS-13VRB03 Air Cond 1.5HP Smart Inverter R32

3 Years General Warranty. 10 Years Compressor Warranty.

UV Cool Smart + Series

HS-13VRB03

Highlights

• AI ECO
• UVC Sterilization

Specs

BTU/h: 12800 (4700-13900)

Specification

Capacity

• Capacity (W): 3750
• Capacity (BTU): 12800（4700-13900）
• Power input (W): 1140
• CSPF: 5.6
• Star Rating: 5
• Running current (A): 5
• Power supply (Ph/V/Hz): 1/220-240/50
• Air circulation (m³/h): 710
• Moisture removal (10¯³m³/h): 1.6
• Refrigerant: R32
• Refrigerant pipe (mm): 6.35
• Type: 9.52

INDOOR

• Net dimension (mm): 805/200/292
• Package dimension (mm): 874/270/363
• Net weight (kg): 9.3
• Gross weight (kg): 11
• Noise [dB(A)] (Hi/Mid/Lo/So): 40/37/32/27

OUTDOOR

• Outdoor Net dimension (mm): 700/245/544
• Outdoor Package dimension (mm): 819/320/592
• Outdoor Net weight (kg): 21.4
• Outdoor Gross weight (kg): 23.3
• Noise [dB(A)]: 51
• Max Pipe Length(m): 15
• Max Pipe Height(m): 10
• Chargless Piping Length(m): 5
• Amount of additional Refrigerant (g/m): 20
• Amount of Gas(g): 400
• Power Supply: Indoor
• Metering Device: Expansion Valve
