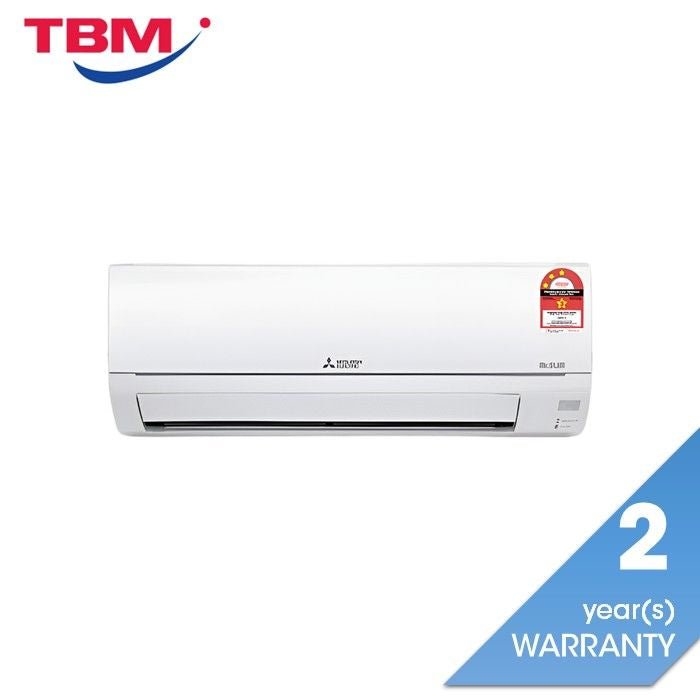

2 Years General Warranty. 7 Years Compressor Warranty.

NANO PLATINUM FILTER

Nanometer-sized platinum-ceramic particles generate stable antibacterial and deodorizing from an enlarged filter capture area. These features give better dust collection performance than conventional filters. The superior air cleaning effectiveness raises room comfort to a higher level.

EASY CLEAN DESIGN

With a removable design, the major components of the indoor unit can be easily dismantled for thorough cleaning, providing you with healthy clean air free from bacteria. It also helps the unit maintain high energy efficiency.

DUAL BARRIER COATING

Our state-of-the-art coating technology helps to prevent dust and greasy dirt from getting into the air conditioner.
Applying the Dual Barrier Coating to the inner surface of the air conditioner prevents dirt from getting in and thus eliminates such problems.

Main Features:

Cleaner Air

• Air Filter (Prefilter)
• Air Cleaning Filter (Electrostatic anti-allergy enzyme filter)*
• Easy Clean Design
• DBC : Fan

Comfort

• Computerized Dehumidification
• Long Air Flow: 12m**
• Fuzzy Logic "I-Feel"
• Econo Cool
• Powerful Cool
• Auto Mode
• Vane Control: 5

Convenience

• 24 hours On/Off timer
• LCD Wireless Remote Controller

Reliability

• Auto restart
• Anti-rust treatment
• Durable Electronic Metal Housing
• Emergency Circuit Protection
• Self Diagnostic (IDU Blinking)
• Auto Fan Mode
• Long Piping Length: 20 / 30m
• Blue Fin Condenser

*optional
**only available for JR18/24

Specifications

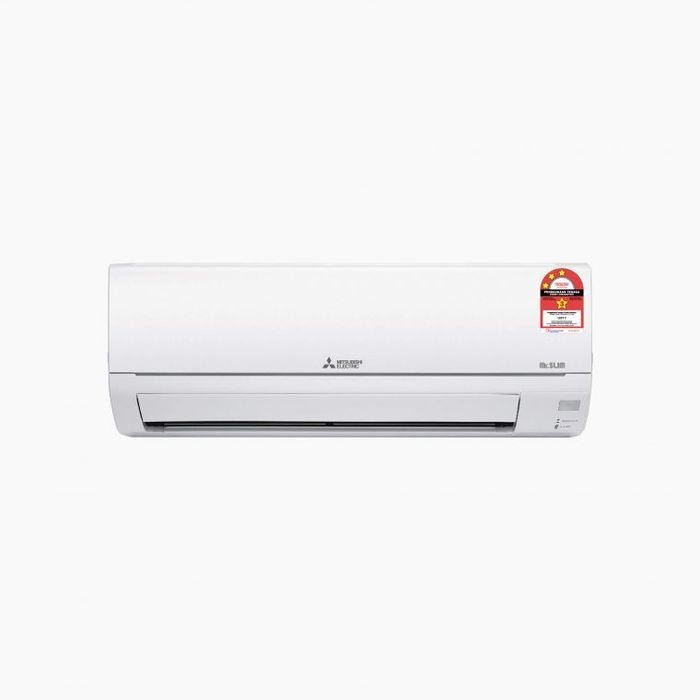

MS-JR10VF (1.0HP)

• Cooling Capacity (Btu/hr): 9,212
• EER (Btu/h.W): 10.97
• CSPF: 3.59
• Power Input (kW): 0.84
• Running Current (A)
• Power Supply: 230V, 50Hz, Single Phase

Indoor Unit

• Air Flow (Lo-Hi) [m3/min]: 4.4 - 11.8
• Air Flow (CFM): 155 - 417
• Noise Level (Lo-Hi) [dB(A)]: 25 - 45
• Dimensions (W x D x H) [mm]: 799 x 232 x 290
• Net Weight (kg): 9

Outdoor Unit

• Dimensions (W x D x H) [mm]: 718 x 255 x 525
• Net Weight (kg): 26
• Noise Level [dB(A)]: 50
• Connection Method: Flared
• Pipe Size (Gas mm): 9.52
• Outer Diameter (Liquid mm): 6.35
• Max Piping Length (m): 20
• Max Height Difference (m): 10
