3 Years General Warranty. 5 Years Compressor Warranty.

Non-Inverter Series

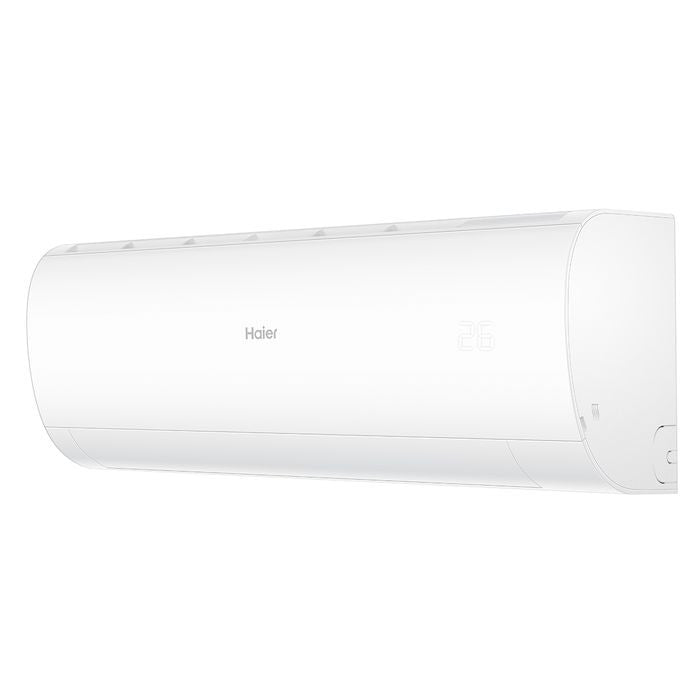

HSU-25LPA23

• Easy Installation
• Triple Airflow
• Anti Corrosion
• Colour: White
• Capacity (W): 6800
• EER (BTU/H/W): 23200
• Air circulation (m³/h): 1000

Specifications

Compressor

• Type: Non Inverter

Model

• Indoor/Outdoor: HSU-25LPA23

Capacity

• Capacity (W): 6800
• Capacity (Btu): 23200
• Power input (W) Cooling: 2140
• CSPF: 3.37
• Star Rating: 3
• Running current (A) Cooling: 10.4
• Power supply (Ph/V/Hz): 1/220-240/50
• Air circulation (m³/h): 1000
• Moisture removal (10¯³m³/h): 2.2
• >Refrigerant: R32
• Refrigerant pipe (mm) Liquid side diameter: 6.35
• Refrigerant pipe (mm) Gas side diameter: 12.70

INDOOR

• Net dimension (mm) W/D/H: 975/220/318
• Package dimension (mm) W/D/H: 1050/301/397
• Net weight (kg): 11.0
• Gross weight (kg): 14.4
• Noise [dB(A)] (Hi/Mid/Lo/So): 47/43/40/38

OUTDOOR

• Net dimension (mm): 820/305/643
• Package dimension (mm): 940/390/697
• Net Weight (kg): 39.3
• Gross Weight (kg): 42.4
• Noise [dB(A)]: 54
• Max Pipe Length(m): 25
• Max Pipe Height(m): 15
• Chargless Piping Length(m): 5
• Amount of additional Refrigerant (g): 20
• Amount of Gas(g): 1200
• Power Supply: indoor
• Metering Device: capillary tube
