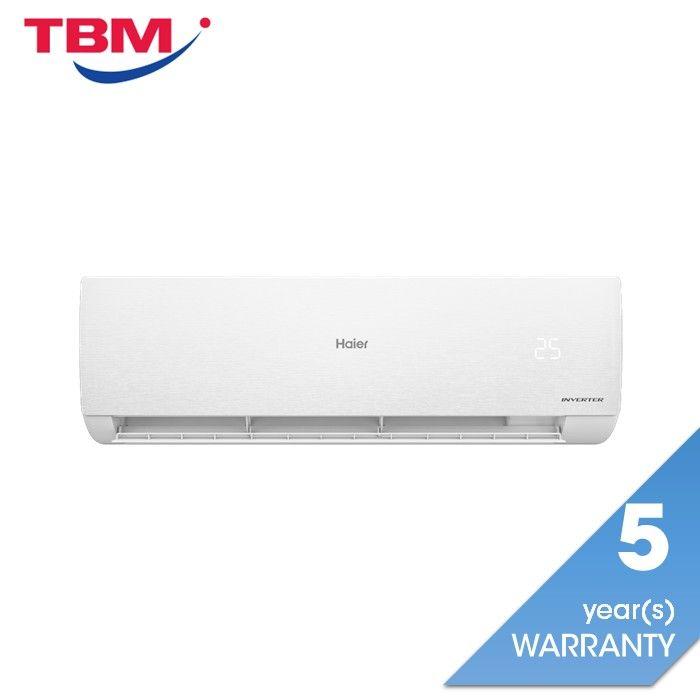

[1.0HP][Inverter] Haier Air Cond 1.0HP Smart Inverter R32

5 Years General Warranty. 10 Years Compressor Warranty.

UV Cool AI ECO

HS-10VSA06

Highlights

• AI ECO
• UVC Pro

Specs

BTU/h: 9700（3800-11000）

Specifications

Capacity

• Capacity (W): 2840
• Capacity (BTU): 9700（3800-11000）
• Power input (W): 660
• CSPF: 6.5
• Star Rating: 5
• Running current (A): 3
• Power supply (Ph/V/Hz): 1/220-240/50
• Air circulation (m³/h): 600
• Moisture removal (10¯³m³/h): 1.2
• Refrigerant: R32
• Refrigerant pipe (mm): 6.35
• Type: R32 Inverter Series

INDOOR

• Net dimension (mm): 812/203/296
• Package dimension (mm): 874/270/363
• Net weight (kg): 8.2
• Gross weight (kg): 10.2
• Noise [dB(A)] (Hi/Mid/Lo/So): 40/36/32/28

OUTDOOR

• Outdoor Net dimension (mm): 660/245/463
• Outdoor Package dimension (mm): 767/314/516
• Outdoor Net weight (kg): 18
• Outdoor Gross weight (kg): 20.5
• Noise [dB(A)]: 50
• Max Pipe Length(m): 15
• Max Pipe Height(m): 10
• Chargless Piping Length(m): 5
• Amount of additional Refrigerant (g/m): 20
• Amount of Gas(g): 400
• Power Supply: Indoor
• Metering Device: Expansion Valve
