3 Years General Warranty. 10 Years Compressor Warranty.

UV Cool Comfort Series

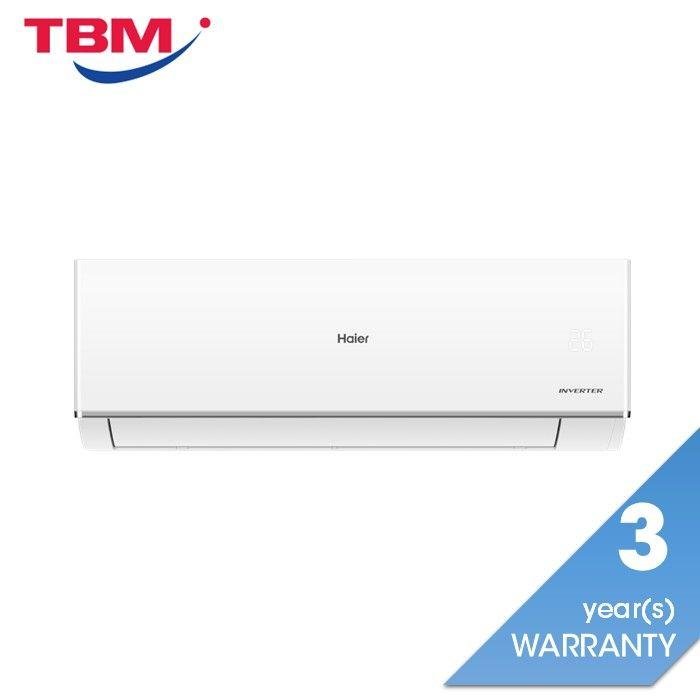

HS-19VQJ08

Highlights

• AI ECO
• UV Sterilisation

Specs

• BTU/h: 18430（4800-19000）

SPECIFICATIONS

Capacity

• Capacity (W): 5400
• Capacity (BTU): 18430（4800-19000）
• Power input (W): 1200
• CSPF: 4.9
• Star Rating: 4
• Running current (A): 7.4
• Power supply (Ph/V/Hz): 1/220-240/50
• Air circulation (m³/h): 800
• Moisture removal (10¯³m³/h): 1.8
• Refrigerant: R32
• Refrigerant pipe (mm): 6.35
• Type: 9.52

INDOOR

• Net dimension (mm): 875/217/307
• Package dimension (mm): 945/296/390
• Net weight (kg): 10.1
• Gross weight (kg): 12.1
• Noise [dB(A)] (Hi/Mid/Lo/So): 46/42/38/32

OUTDOOR

• Outdoor Net dimension (mm): 700/245/544
• Outdoor Package dimension (mm): 819/320/592
• Outdoor Net weight (kg): 22.9
• Outdoor Gross weight (kg): 24.8
• Noise [dB(A)]: 54
• Max Pipe Length(m): 25
• Max Pipe Height(m): 15
• Chargless Piping Length(m): 5
• Amount of additional Refrigerant (g/m): 20
• Amount of Gas(g): 670
• Power Supply: Indoor
• Metering Device: capillary tube
