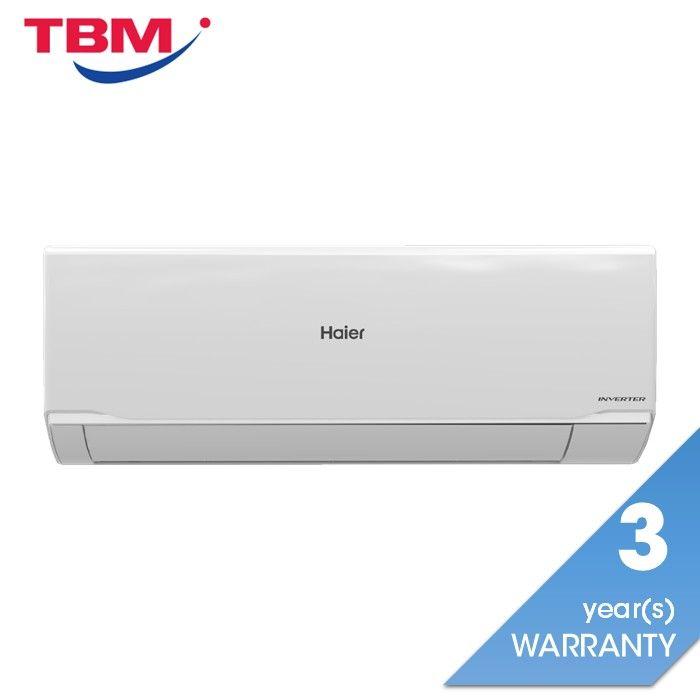

[2.5HP][Inverter] Haier Air Cond 2.5HP Smart Inverter R32

3 Years General Warranty. 10 Years Compressor Warranty.

UV Cool Smart + Series

HS-25VRB03

Highlights

• AI ECO
• UV Sterilisation

Specs

BTU/h: 24200（3200-24800）

Specifications

Capacity

• Capacity (W): 7150
• Capacity (BTU): 24200 (3200-24800)
• Power input (W): 2250
• CSPF: 5.10
• Star Rating: 5
• Running current (A): 9.8
• Power supply (Ph/V/Hz): 1/220-240/50
• Air circulation (m³/h): 1100
• Moisture removal (10¯³m³/h): 2.0
• Refrigerant: R32
• Refrigerant pipe (mm): 6.35
• Type: 12.70,R32 Inverter Series

INDOOR

• Net dimension (mm): 975/220/318
• Package dimension (mm): 1050/397/301
• Net weight (kg): 12.0
• Gross weight (kg): 14.0
• Noise [dB(A)] (Hi/Mid/Lo/So): 48/45/41/38

OUTDOOR

• Outdoor Net dimension (mm): 800/280/553
• Outdoor Package dimension (mm): 902/375/614
• Outdoor Net weight (kg): 31
• Outdoor Gross weight (kg): 34
• Noise [dB(A)]: 54
• Max Pipe Length(m): 25
• Max Pipe Height(m): 15
• Chargless Piping Length(m): 5
• Amount of additional Refrigerant (g/m): 20
• Amount of Gas(g): 850
• Power Supply: Indoor
• Metering Device: Expansion Valve
