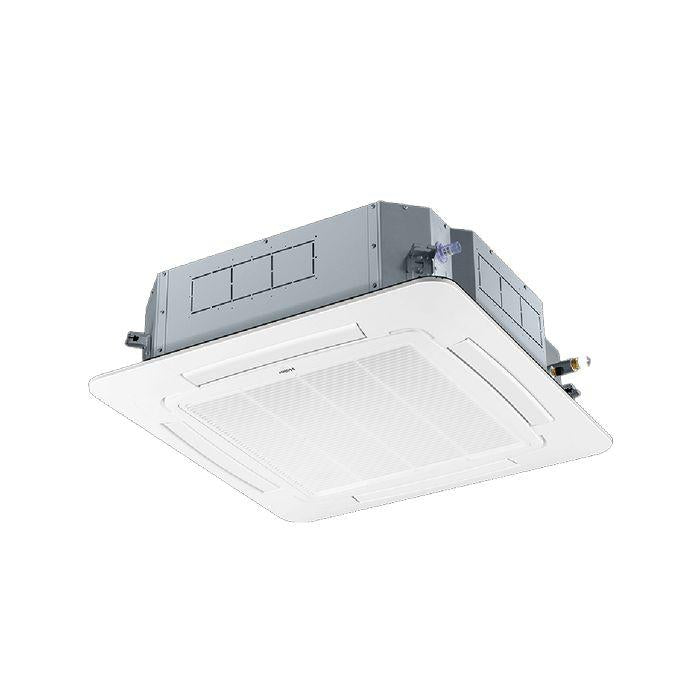

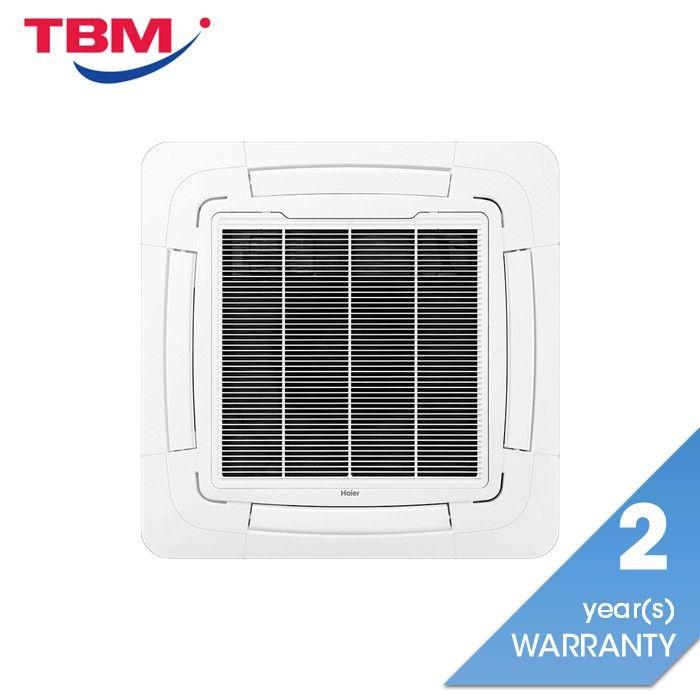

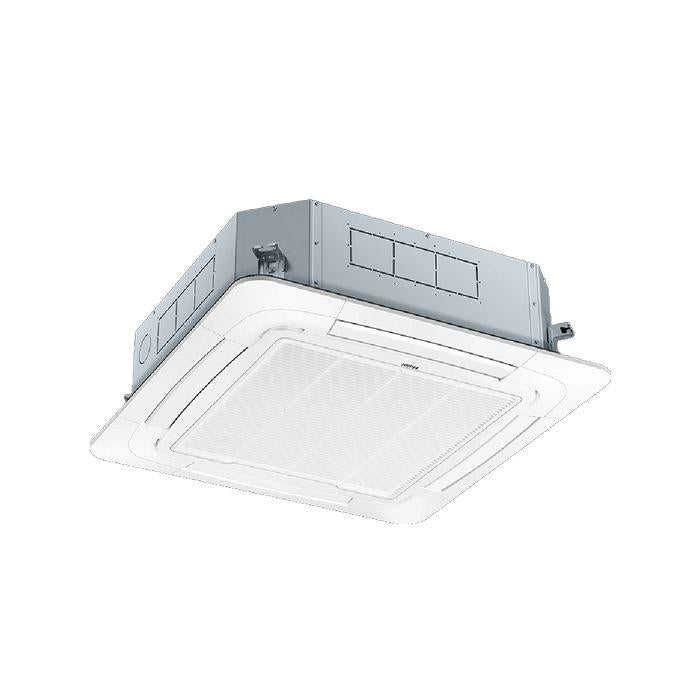

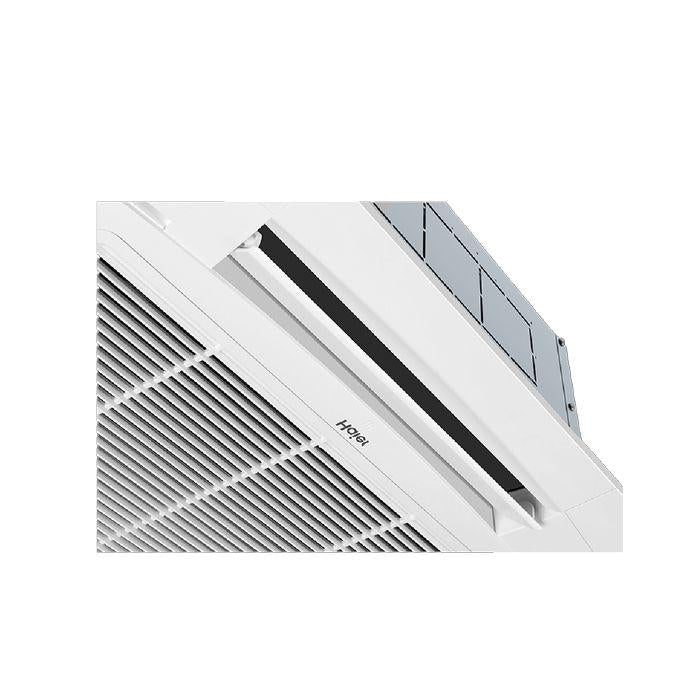

[2.5HP][Non-Inverter] Haier Air Cond 2.5HP Ceiling Cassette Non-Inverter R32

2 Years General Warranty. 5 Years Compressor Warranty.

Mini Central Air Conditioner - R32 Non-Inverter 4 Way Cassette

HC-24LQB03

Highlights

• Long Distance Airflow
• 360 Airflow
• Independant Flap Control

Specs

R32/7180/24500/1380

Specifications

Compressor

• Type: Non-Inverter,Ceiling Cassette R32 Non-Inverter Series

Model

• Indoor/Outdoor: HC-24LQB03

Capacity

• Capacity (W): 7180
• Capacity (Btu): 24500
• Power input (W) Cooling: 2244
• CSPF: 3.4
• Running current (A) Cooling: 10.3
• Power supply (Ph/V/Hz): 1/220V-240/50
• Air circulation (m³/h): 1380
• Moisture removal (10¯³m³/h): 4.25
• Refrigerant: R32
• Refrigerant pipe (mm) Liquid side diameter: 6.35
• Refrigerant pipe (mm) Gas side diameter: 12.7

INDOOR

• Net dimension (mm) W/D/H: 840*840*204
• Package dimension (mm) W/D/H: 943*943*261
• Net weight (kg): 22
• Gross weight (kg): 27
• Noise [dB(A)] (Hi/Mid/Lo/So): 48/46/42/40

OUTDOOR

• Net dimension (mm): 920*385*762
• Package dimension (mm): 1072*473*789
• Net Weight (kg): 48.5
• Gross Weight (kg): 52.5
• Noise [dB(A)]: 56
• Max Pipe Length(m): 35
• Max Pipe Height(m): 20
• Chargless Piping Length(m): 15
• Amount of additional Refrigerant (g): 20
• Amount of Gas(g): 1500
• Power Supply: indoor/outdoor
• Metering Device: capillary tube
