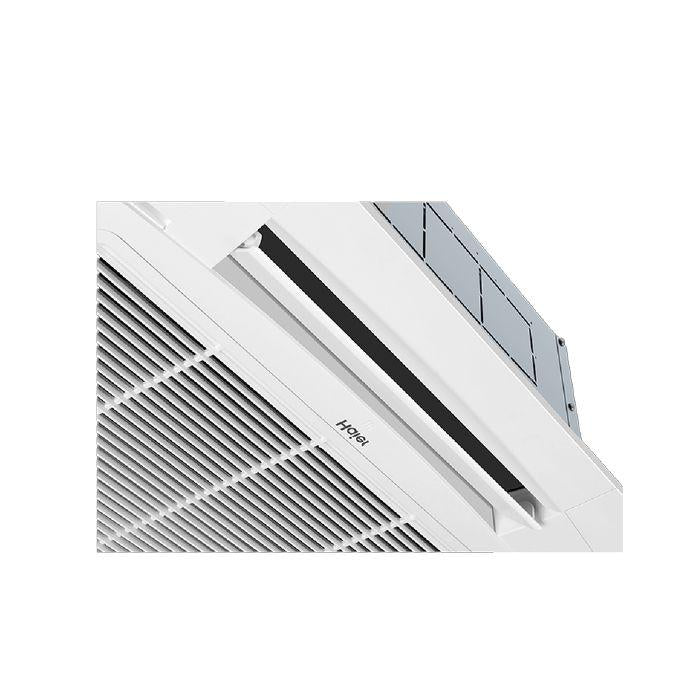

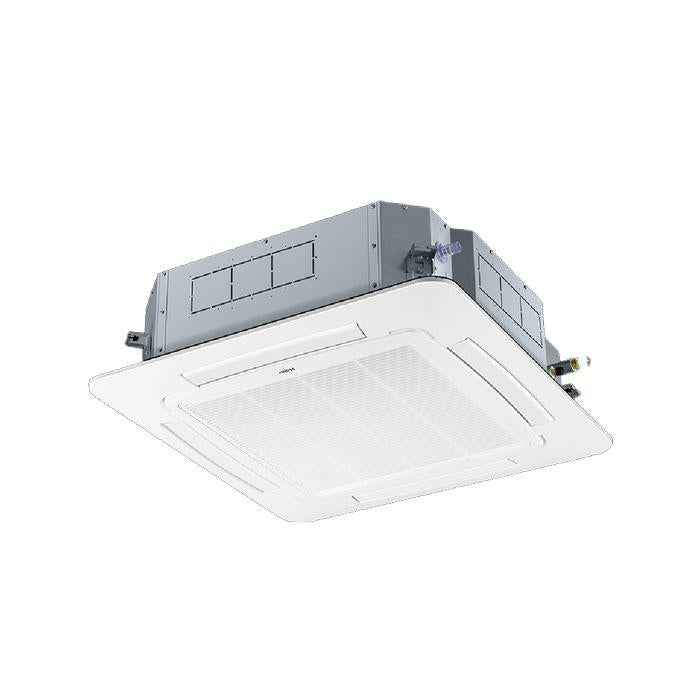

[5.0HP][Non-Inverter] Haier Air Cond 5.0HP Ceiling Cassette Non-Inverter R32

3 Years General Warranty. 5 Years Compressor Warranty.

Mini Central Air Conditioner - R32 Non-Inverter 4 Way Cassette

HC-48LQB03

Highlights

• Long Distance Airflow
• 360 Airflow
• Independant Flap Control

Specs

R32/14070/48000/2100

Specifications

Compressor

• Type: Non-Inverter,Ceiling Cassette R32 Non-Inverter Series

Model

• Indoor/Outdoor: HC-48LQB03

Capacity

• Capacity (W): 14070
• Capacity (Btu): 48000
• Power input (W) Cooling: 4397
• CSPF: 3.4
• Running current (A) Cooling: 7.93
• Power supply (Ph/V/Hz): 3/380V-415/50
• Air circulation (m³/h): 2100
• Moisture removal (10¯³m³/h): 8.5
• Refrigerant: R32
• Refrigerant pipe (mm) Liquid side diameter: 9.52
• Refrigerant pipe (mm) Gas side diameter: 15.88

INDOOR

• Net dimension (mm) W/D/H: 840*840*288
• Package dimension (mm) W/D/H: 943*943*345
• Net weight (kg): 25
• Gross weight (kg): 31
• Noise [dB(A)] (Hi/Mid/Lo/So): 51/48/44/40

OUTDOOR

• Net dimension (mm): 1100*400*845
• Package dimension (mm): 1167*520*960
• Net Weight (kg): 93
• Gross Weight (kg): 102
• Noise [dB(A)]: 60
• Max Pipe Length(m): 50
• Max Pipe Height(m): 30
• Chargless Piping Length(m): 15
• Amount of additional Refrigerant (g): 45
• Amount of Gas(g): 2850
• Power Supply: outdoor
• Metering Device: capillary tube
