2 Years General Warranty.

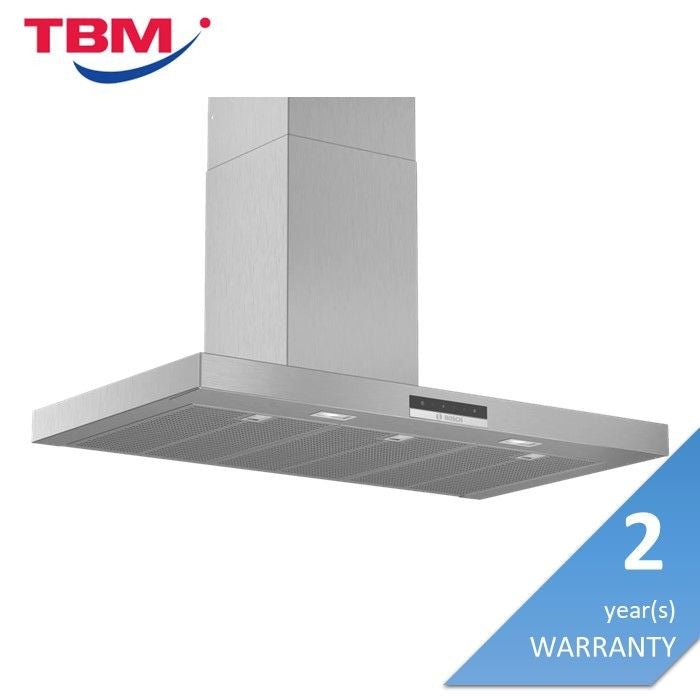

DWB97DM50B

Series 4

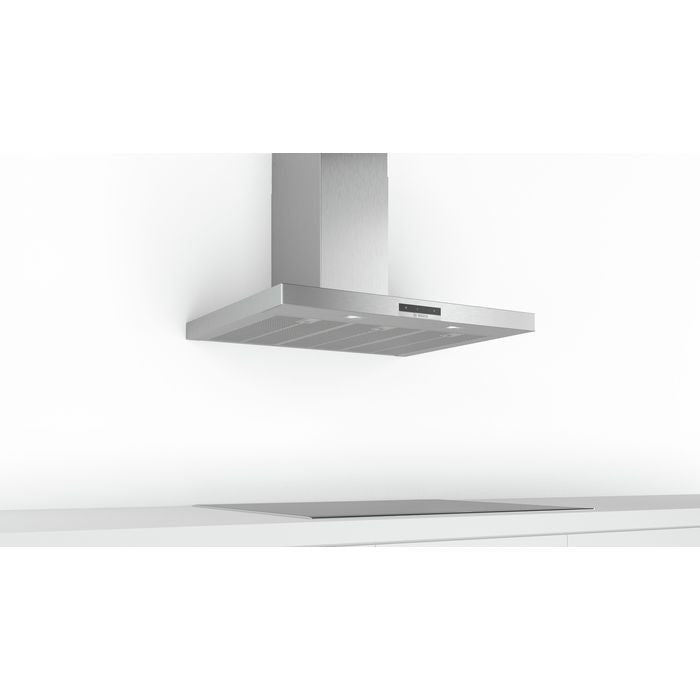

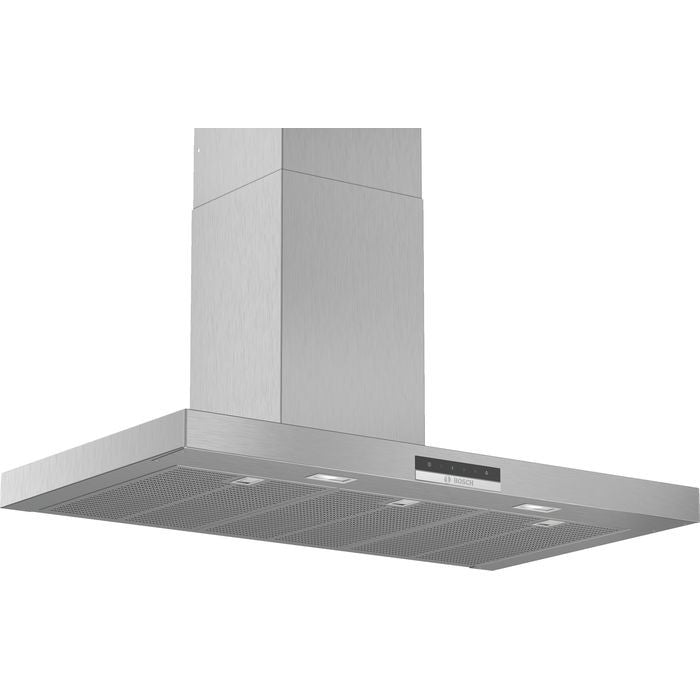

Wall-mounted Hood
90 cm

Highlights

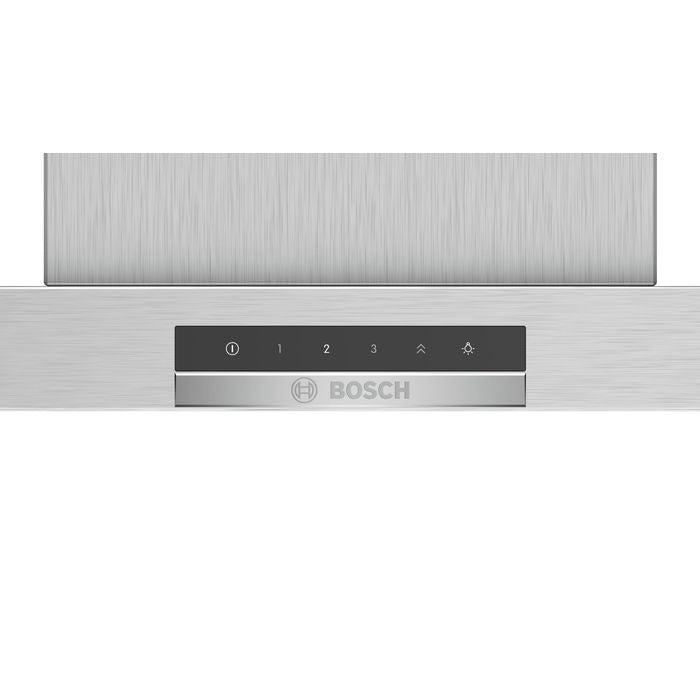

With our control elements, you have everything under control

With the new, easy-to-read TouchSelect control, you can select three power levels and one intensive setting directly.

The optimum air volume for kitchen of all sizes.

No matter whether you have an open-plan kitchen and living-room or a small, closed-off kitchen. We offer the optimum air volume for kitchens of all sizes. Air should be exchanged 6 to 12 times an hour to ensure a consistently pleasant ambience. To do so, the air delivery volume or power of the cooker hood must be appropriate to the room volume.

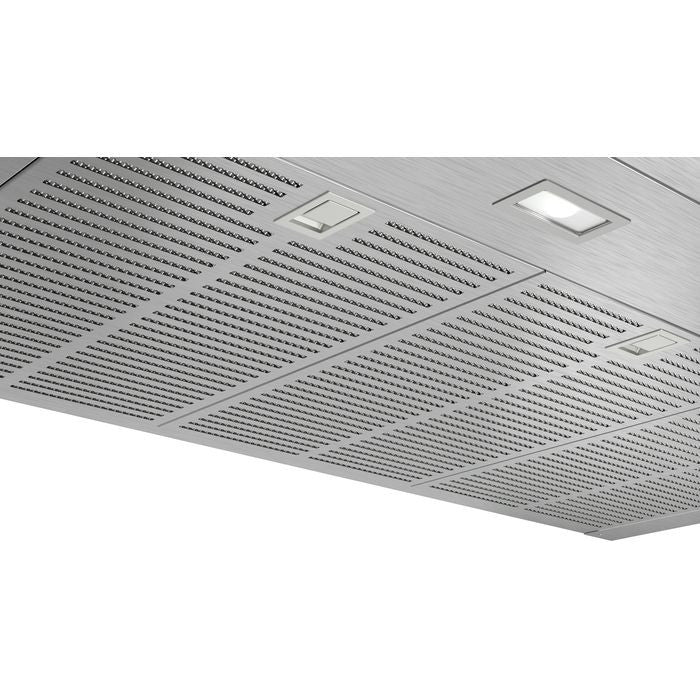

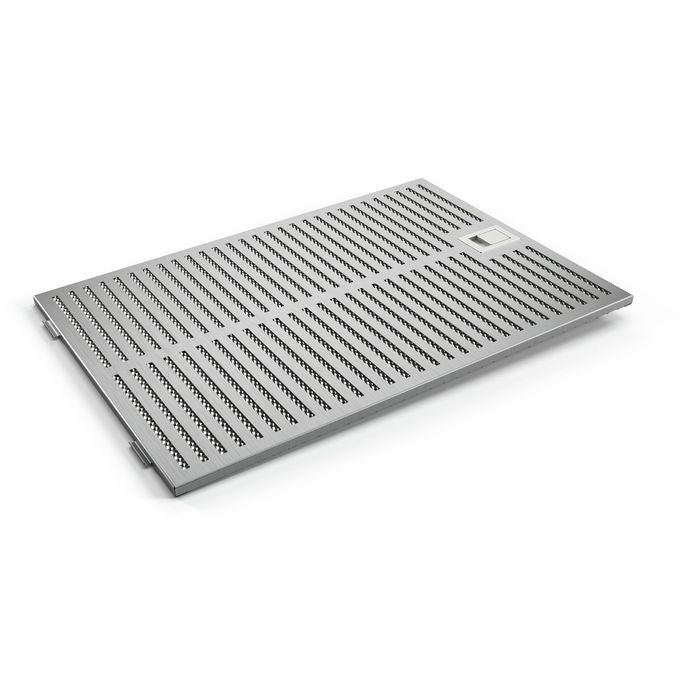

Metal grease filter

Ducted and recirculation hoods require metal grease filters to filter grease and other solid particles out of the extracted air. To keep these filters operating at maximum efficiency, clean them about once a month either by hand or in the dishwasher.

• TouchSelect control: quick touch-control selection of desired settings and light.
• For fast and effective extraction, the intensive speed setting removes strong kitchen odours quickly and effectively.
• Silent: maximal extractor performance with little noise
• Intensive speed setting with reset: automatically resets the hood to normal speed setting
• LED-Illumination: The energy-saving lighting provides white and good lighting for the hob area.

Additional product information

General

• Width: 90 cm
• Depth of the product: 500 mm
• Built-in / Free-standing: Built-in
• Ventilation mode: Convertible
• Max. air recirculation: 404 m³/h
• Sound pressure max. normal: 52 dB(A) re 1 pW
• Type of control setting and signalling devices: LED, touch control
• Energy efficiency rating: B
• Total annual energy consumption: 62.5 kWh/annum
• Power consumption standby/display off: 0.3 W

Construction type

• Diameter of air outlet: 120 / 150 mm
• Colour of the body: Stainless steel
• Grease filter material: Washable stainless steel
• Grease filter type: Kassette
• Installation typology: Wall-mounted
• Material of the body: Stainless steel
• Material chimney: Stainless steel
• Motor location: Integrated motor in hood chimney
• Number of motors: 1
• Ventilation mode: Convertible
• Typology: Wall-mounted

Connection

• Connection rating: 255 W
• Length electrical supply cord: 130.0 cm
• Frequency: 50; 60 Hz
• Total power of the motors: 250 W
• Voltage: 220-240 V

Design

• 90 cm wide
• Wall mounted hood
• Electronic controls via TouchControl

Operating mode / operation

• 3 speeds plus intensive setting
• Extraction rate exhaust air according to EN 61591: max. normal use 453m³/h, Intensive 739m³/h
• Extraction rate in recirculation mode:
  Max. normal use:324m³/h
  Intensive:379 m³/h
• Noise level according to EN 60704-3 and EN 60704-2-13 at max. normal use exhaust air: 65 dB(A) re 1 pW (52 dB(A) re 20 µPa sound pressure)
• Noise level in recirculation mode:
  Max. normal use:74 dB(A) re 1 pW (61 dB(A) re 20 µPa sound pressure)
• Average Energy Consumption: 62.5 kWh/year*
• Blower Efficiency Class: B*
• Lighting Efficiency Class: A*

Comfort

• Suitable for ducted or re-circulated extraction
• Metal grease filter, dishwasher safe
• 2 x 1,5W LED
• Light Intensity: 214 lux
• Colour Temperature: 3500 K

Technical information

• Diameter pipe Ø 150 mm (Ø 120 mm enclosed)

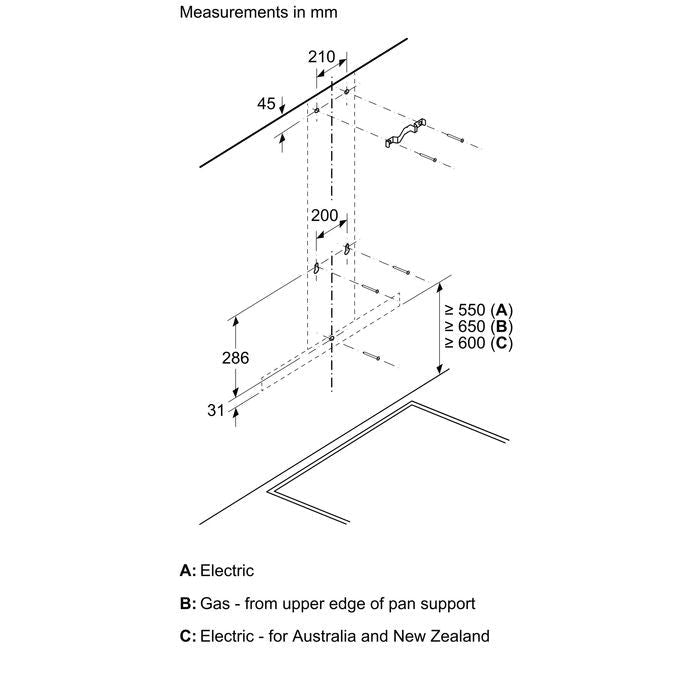

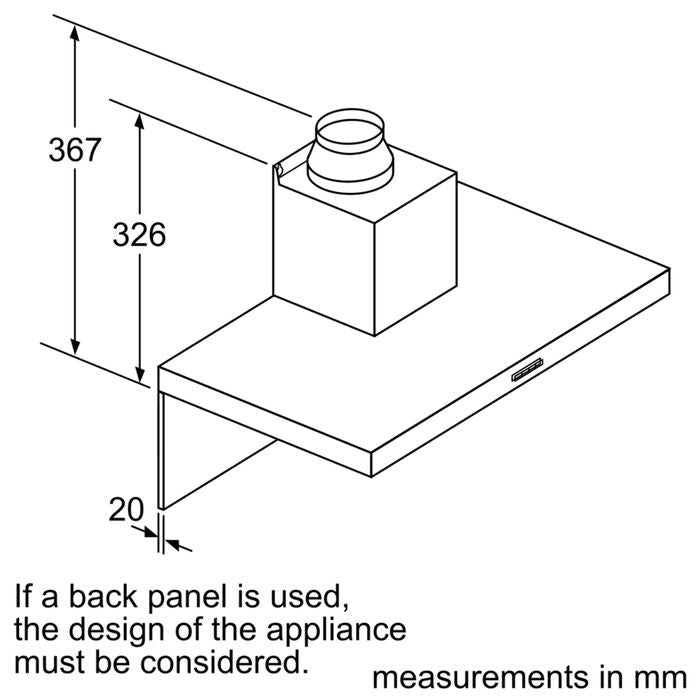

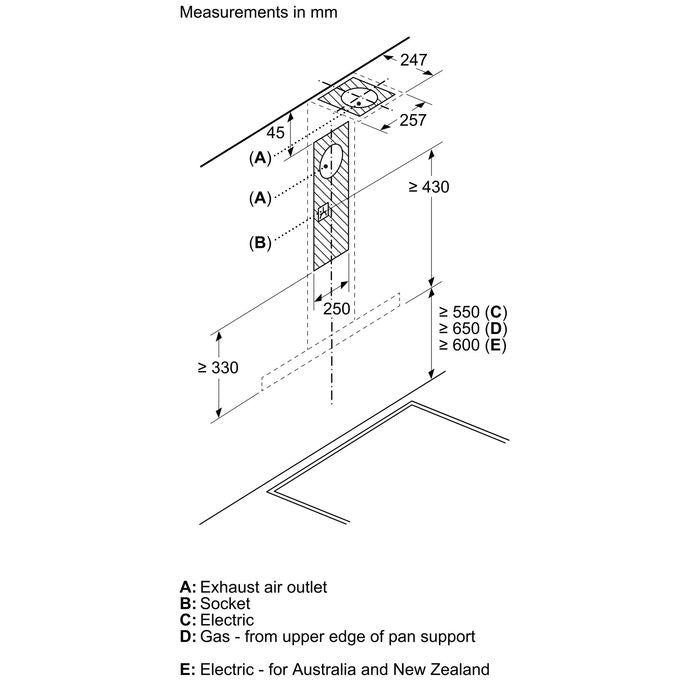

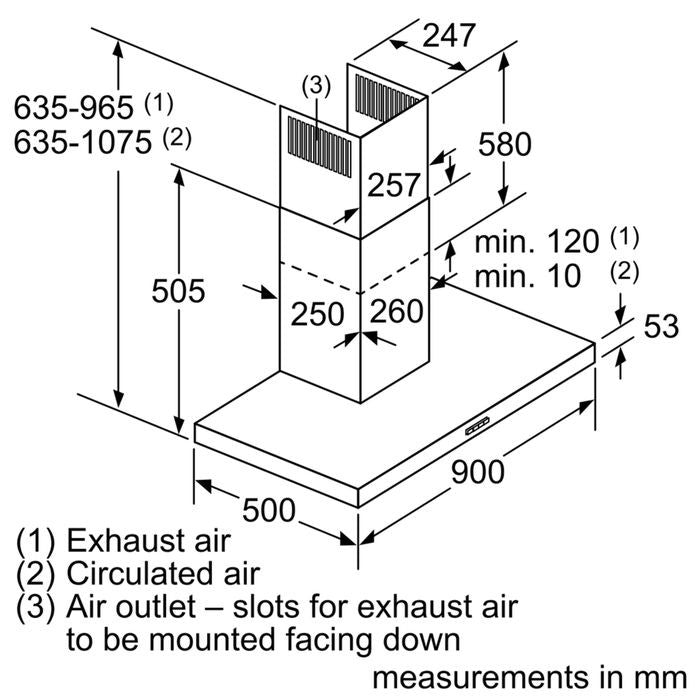

• Dimensions exhaust air (HxWxD): 635-965 x 900 x 500 mm
• Dimensions recirculating (HxWxD): 635-1075 x 900 x 500 mm
• Connected load: 255 W
• Electrical cable lenght 1.3 m
