Haier 100" QD Mini LED Google TV

3 Years General Warranty.

QD-Mini LED Series

H100S90FUX

Highlights

• 100" QD-Mini LED Google TV

Specs

100"

Specifications

General

• Screen Size: 100"
• ID & Appearance: 100S90
• System of Digital TV: DVB-T+C+T2 H.265+S2
• System of Analog TV: PAL/SECAM
• Smart TV: Google TV
• Wall Mounts Standard(VESA): 300x400
• Bluetooth: 5.2
• WIFI: wifi6，2.4/5G ,2T/2R,802.11 a/b/g/n/ac/ax

Panel

• Active Screen Area（inch): 100"
• Aspect Ratio: 16:9
• Panel Model: /CVA00U1-T01/DLG 240Hz
• Resolution: 3840*2160
• Brightness(cd/m2): 500nits/1000nits
• Brightness(cd/m2) in Energy Saving Mode: ≥65%
• Colour Gamut: QLED
• Colour Gamut Data（DCI-P3\NTSC): Typical-93%（DCI-P3）
• Contrast Ratio: 5000:1
• Dynamic Contrast Ratio: 1000000：1
• Array Backlight: MINILED
• Response Time: 6.5ms(TYPICAL)
• Color Depth: 1.07B
• Refresh Rate: 144Hz
• Viewable Angle(H/V): Typ. +89/-89(H), +89/-89(V) (CR≧ 10)(Typical value measured by CHOT’s Module)

Audio

• Super Woofer: YES
• Surrounding Sound（Simulate）: YES
• Mute: YES
• NICAM: YES
• Stereo Speaker: YES
• Auto Volume Leveling: YES
• Sound balance: YES
• Sound EQ: YES
• Audio-Only (Picture off): YES
• Dolby Digital Decoding: YES
• dbx-tv: YES
• KEF: YES
• Dolby Atoms: YES

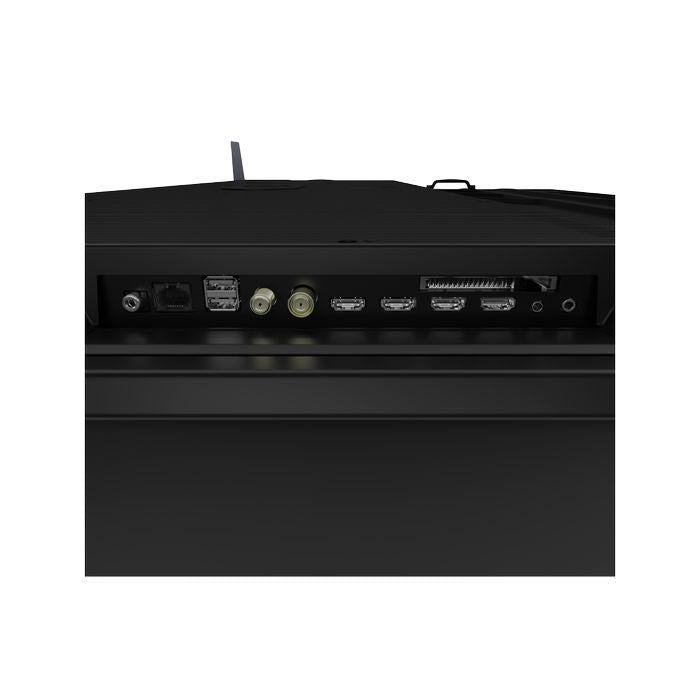

Input/Output

• HDMI Input: 2*HDMI2.1 @4K144Hz(3,4)/2*HDMI2.1 compliance@4K60Hz(1,2)
• Tuner Input: 2
• Composite Input: 1
• Shared Audio Input: 1
• Headphone Jack: 1
• CI Interface: 1
• USB ports: 2(1*USB 3.0 1*USB 2.0）
• SPDIF: 1
• Ethernet LAN: 1
• Wireless Wifi Access: YES

Specs

• RAM: 4GB
• ROM: 64GB
• System: Google TV
• Applications-Netflix: Yes
• Applications-Youtube: Yes
• Applications-Google Play Store: Yes
• Applications-Google Assistant: Yes
• Live TV: Yes
• TV Assistant: Yes
• Haismart: Yes
• SW Update-GOTA: Yes
• SW Update-USB: Yes
• Far field vocie control: FFGA(Far field with Google Assistant）

Software

• Shopping Mode: YES
• HDR10: YES
• HDR10+: YES
• Dobly Vision: YES(Dobly Vision IQ)
• HLG: YES
• Multi-Picture Modes: User、Standard、Vivid、Sports、Movie、Game、Energy Saving
• Multi-Audio Modes: User、Standard、Sports、Movie、Music、News
• Wide Mode: Automatic、Super zoom、4:3、Movie expand 14:9、Movie expand 16:9、Full、Unscaled
• Energy Saving: YES
• Color temperature: User/Standard/Warm/Cool
• Default Color temperature: Standard
• Digital Noise Reduction: YES
• MEMC: YES（120Hz）
• Channel Edit: YES
• Favourite List: YES
• USB File system: FAT32 NTFS
• Parental controls: YES
• E-Manual: YES
• Chromecast: YES
• HDMI ARC: YES(HDMI3 EARC)
• HDMI CEC: YES
• Factory Menu Access: Input-left left up right
• Default Password: user set
• Auto-Timer on/off: YES
• PVR: YES
• Timeshift: YES
• EPG(专利规避 Patent free): YES

Accessory

• RC model: HTR-U35G
• Battery: AAAx2
• Registration card: 保修卡 warranty card （同说明书语言种类）
• Stand Assemble instruction: Yes（in User Mannual）
• Power Cord: 外露1.8m

Physical Characters

• No. of Built-in Speakers: 3
• FC\BC\Stand\PCB fireproofing: BC\PCB V0 FC\Stand Metal
• Standby Power Consumption: ≤0.5W
• Voltage Range: 176-240V 50/60Hz
• Power Plug: EU PLUG
• Net Weight (W/OStand): 68.2
• Net Weight (With Stand): 66.1
• Gross Weight: 101.2KG
• Net Dimension(Without Stand): 2227*1278*94mm
• Net Dimension(With Stand): 2227*1322*389mm
• Packaging Dimension: 2410*310*1500mm
