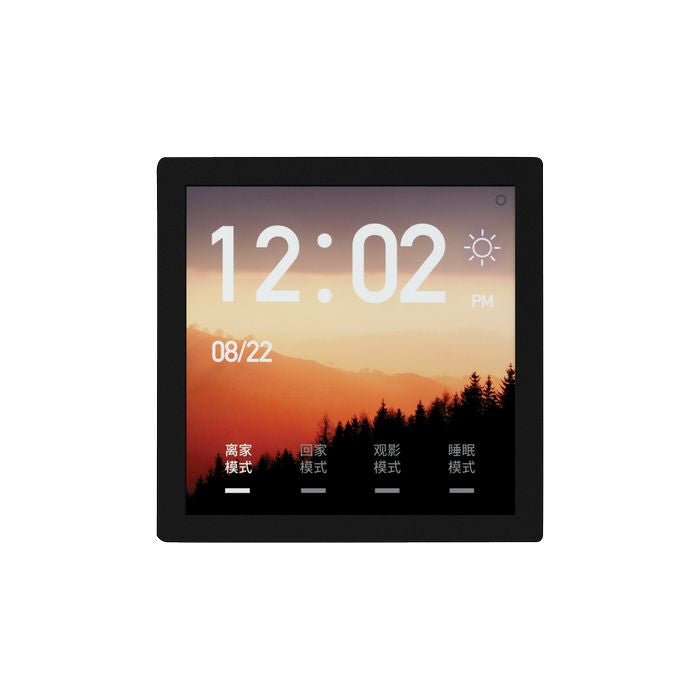

Lifesmart LS228GR Nature Pad Mini Main Control Panel Coverage 600 Sqft

1 Year General Warranty.

• 4'' High definition touch screen
• Integrated with loT gateway and smart switch
• Set and enable kinds of scenarioes through this
  switch pane
• Control music ,lighting, curtain,HVAC and others

• Model Number
  • LS226WH- LS228WH
• Installation
  • In-wall concealed with 86 back box(standard )
• Operating Temperature
  • -5~45
• Operating Humidity
  • 5~90％
• Network
  • Wi-Fi 2.4GHz/ Ethernet
• Power Consumption
  • <20W
• Interface
  • Live/Neutral
  • Light1
  • Light2
  • Light3 wire in
• Button
  • Customizable scene-switch
• Screen
  • 4” inch touch screen
• Resolution
  • 480 x 480
• CPU
  • 4 Core ARM
• Power Supply
  • AC 100-240V 50/60Hz
• RAM
  • 2GB
• Oprating System
  • Linux
• Bluetooth
  • Yes (Bluetooth 4.2)
• Speaker
  • Yes
• Microphone
  • Yes

• Color
  • White/ Black
• Dimensions
  • Outside dimension: 86*86*11mm
  • Whole product dimension: 86*86*36mm
• Weight
  • 90g(panel only)
• Casing
  • Flameresistant PC
