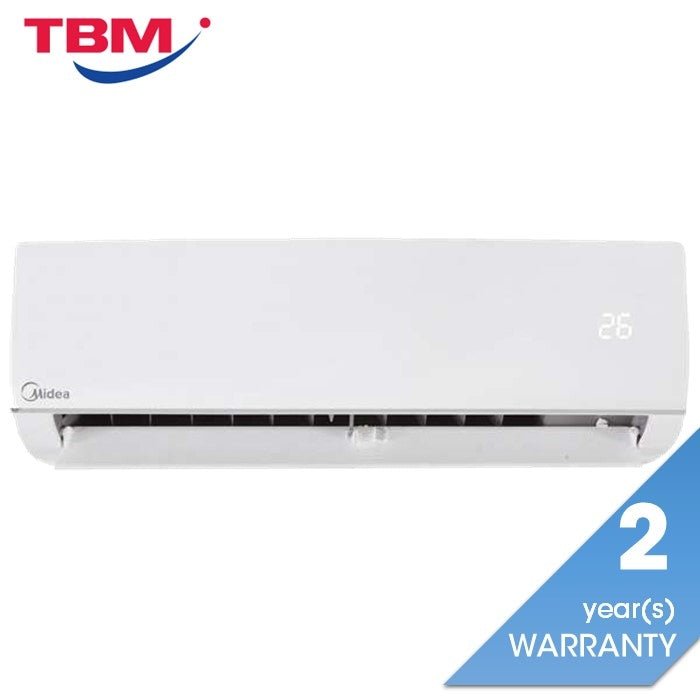

2 YEARS GENERAL WARRANTY

Specifications

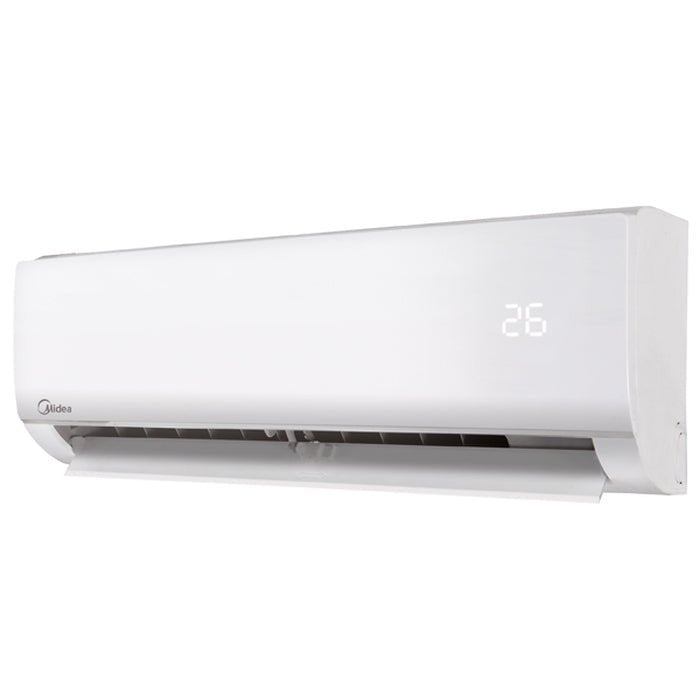

• Model: MSMF-10CRN8
• Cooling Capacity (Rated) (Min~Max) (Btu/h): 9300
• Power consumption (W): 790
• Running current (A): 3.44
• CSPF(Cooling seasonal performance factor) (Wh/Wh): 3.64
• Energy Efficiency Star Rating: 4 Stars
• Power supply: 220-240V~,50Hz,1Ph (Power supply to Indoor)
• Indoor Unit
• Indoor air flow (H) [m3/h(cfm)]: 593 (349)
• Indoor Sound level (H/L) [dB(A)]: 41/33.5/28.5
• Dimension(W*D*H) (mm): 805 x 194 x 285
• Packing (W*D*H) (mm): 870 x 270 x 365
• Net/Gross weight (Kg): 8.2/10.5
• Outdoor Unit
• Indoor Sound level [dB(A)]: 51
• Dimension(W*D*H) (mm): 720x270x495
• Packing (W*D*H) (mm): 835x300x540
• Net/Gross weight (Kg): 23.1/24.9
• Refrigerant Charge: R32/420g
• Design pressure (MPa): 4.3/1.7
• Refrigerant piping
• Liquid side/ Gas side mm(inch): Φ6.35/Φ9.52(1/4″/3/8″)
• Max. refrigerant pipe length: 20m
• Max. difference in level: 8m
