80" 8-Blade Ceiling Fan (Canopy / Pipe)

8-blade Design
Motion Sensor
New Twin DC Motor Technology
Yuragi (Natural Breeze) Function
Enhanced Safety Features
Durable PPG Blade with Aluminum Blade Extension
Greater Air Delivery

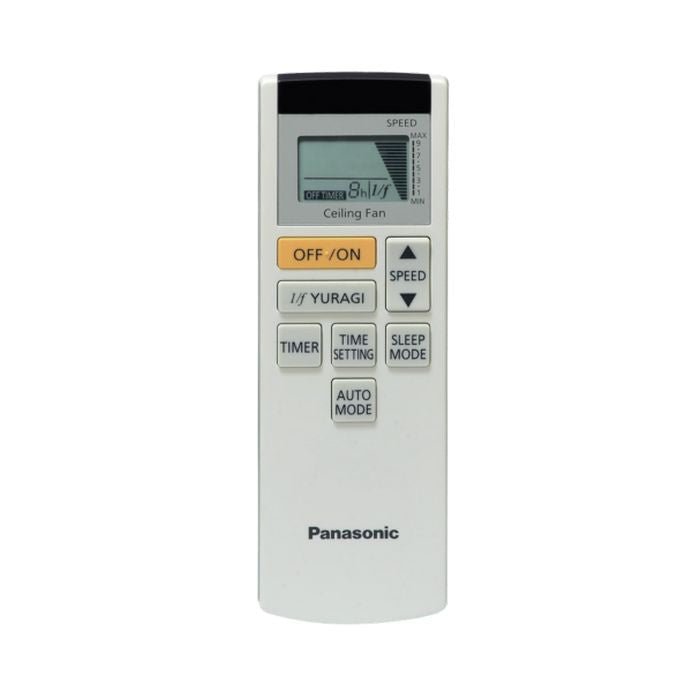

LCD Remote Control with 9-sequential speed selection
1-8 Hour Off Timer
1-8 Hour On Timer
2-8 Hour Sleep Timer

Overview

Motion Sensor

Motion sensor detects human movement and activity within its detection range. The sensor will respond according to intensity of activity by changing the fan speed.

Motion Sensor coverage

Recommended fan installation height is 2.5m to 3m at detection range of 4m
Motion sensor coverage may be affected by different fan installation height and room temperature Motion Sensor coverage

Example of Motion Sensor Mode Operation

Low Activity:

Little movement such as reading, eating, talking, etc.
Fan speed maintains as the user's set speed.

High Activity:

Continuous or vigorous movement such as running on treadmill, mopping floor, etc.
Fan will increase by two speed from the user's set speed after 5 minutes of detection (one time only).

No Activity:

No movement.
Fan will reduce three speed from user's setting speed after 5 minutes. If no movement occurs in next approximate twenty minutes, fan will reduce to user’s minimum fan speed setting.

How Motion Sensor Works?

This fan is equipped with Memory Function to restore user's last setting whenever fan is switched on. Whenever fan starts operating (by wall switch), motion sensor needs approximate one minute to initialize.

Performance and accuracy may vary depending on actual condition use where heat source is:

other than human being detected such as small animals, strong illuminating objects (e.g sunlight, fluorescent light, etc.), or temperature change (e.g air conditioner, heating unit, etc.).
difficult to be detected when there is no movement.

* Indicates the maximum speed and minimum speed after changing speed during High Activity and No Activity. Maximum fan speed is Speed 9. The speed will not increase more than Speed 9 during High Activity. Minimum fan speed is Speed 1 or OFF. The speed will not decrease lower than Speed 1 or OFF during No Activity.

New Twin DC Motor Technology

Twin DC motor with higher motor power and reduce power consumption up to 50% compared to AC motor. Also, it has bigger Blade Size (70") that provides higher air delivery compared to 60" models.

Recommended Area

Residential (Indoor/Outdoor)

Wide/High Ceiling Area
Living Rooms/Dining Rooms
Verandah/Balcony
Garages

Recommended Area

Commercial (Indoor/Outdoor)

Cafes
Restaurants
Hotels/Resorts/Villas
Garages

Recommended Area

Public Ammenties (Indoor/Outdoor)

R&R Stops
Mosques
Train Stations
Amenities Halls

**Comfortable - 1/f Yuragi* (Natural Breeze)**

These fans are equipped with 1/f Yuragi function which is a fluctuating pattern to generate a gentle breeze. By this sophisticated formula, in varying air velocity and controlling wind force, these new ceiling fans gives you a peaceful and comfortable feeling.

Current function: rhythm breeze
This regulator pattern decreases the body temperature after a period of time. Thereafter, you may feel anxious and uncomfortable when the wind velocity changes.

New Function: 1/f Yuragi
Incorporated with this human-concerned technology, this kind of rhythm maintains your external body temperature by giving you a feeling of natural wind when there is a change of wind velocity.

Caring - Sleep Mode

These fan are equipped with Sleep Mode, by which fan speed and timer will gradually reduce until the fan is off. This function not only creates an optimal sleeping environment but also enhances energy saving as well.

* Note:
- Sleep mode is disabled at speed 1 and 1 hour setting.
- Operation patter will be different subject to different model and setting, please refer to the operation instruction for details.

Ball Joint Hanging Structure

The new ball joint structure replaced the conventional hook for safety and easier installation purpose.

Benefits of Ball Joint vs Hook
For Safety:

Support heavier weight
Enhance mounting stability
Embedded safety switch

Easier fan installation
Installer can easily secure the pipe to the ball joint using both hands

No hook required
Hanger plate will be provided

Safety Policy by Panasonic

Preventive Measures For Safety

Panasonic aims to minimize and reduce accidents to occur. Thus, Panasonic practices safety policy to prevent any dangerous mishaps.

To pursue a higher quality of life, ceiling fans are expected to have more functions and value added features. However, it is also crucial to consider the safety and reliability features of the fan when you select a ceiling fan.

Features

Motion Sensor / Twin DC Motor
Dimension
- Width: 2000mm (80")
  Height: Canopy Type: 446mm, Pipe Type:702mm
Colour: Black

Specifications

Fan Size (inch/cm): 80"/200cm
Power Consumption (W)
- (Low): 3
- (High): 60
Fan Speed (RPM)
- (Low): 50
- (High): 150
Air Velocity (m/min) (Low): 170
Air Delivery (m3/min): 360
Colour: Black
Twin DC Motor Technology: Yes
Motion Sensor: Yes
Yuragi: Yes
Remote Control: Yes
Enhance Safety Features: Yes
Blade Type: PPG & Metal
Dimension: Width: 2000mm (80")
Height: Canopy Type: 446mm, Pipe Type:702mm
