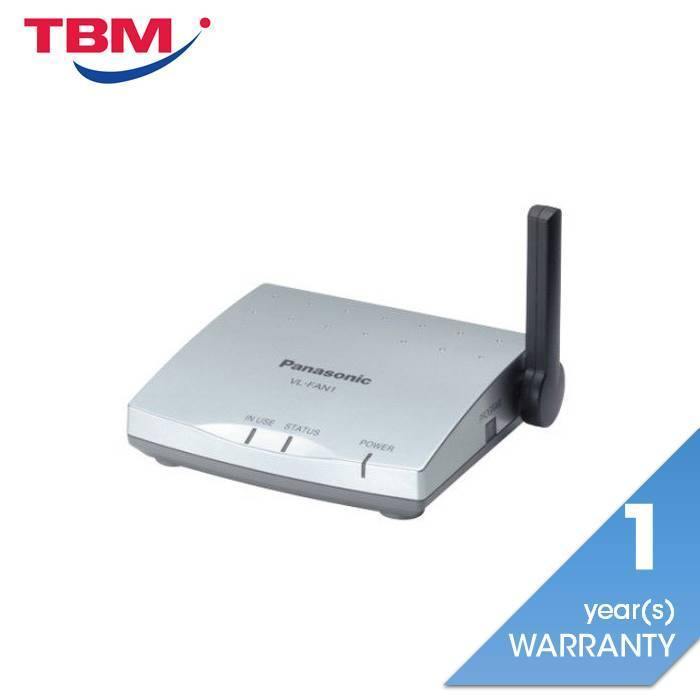

1 Year General Warranty.

Features

- Metallic door or shutter
- Heat insulator including aluminium foil
- Concrete wall or wall made of galvanized iron sheet
- When using the sub monitor station on the different floor or house in the same grounds where the main monitor station has been installed.

Environment

- Keep the unit away from electrical noise generating devices, such as fluorescent lamps and motors.
- The unit should be kept away from excessive smoke, dust, high temperature and vibration.
- The unit should not be exposed to direct sunlight.
- Do not place heavy objects on top of the unit.
- When you leave the unit unused for a long period of time, unplug it from the power outlet.
- The unit should be kept away from heat sources such as heaters, kitchen stoves, etc. It should not be placed in rooms where the temperature is less than 0 Celcius or greater than 40 Celcius. Damp basements should also be avoided.
- The maximum calling distance (approx. 100 m) may be shortened when the unit is used in the places:
- Where there are following obstacles between this unit and the main monitor station or the sub monitor station:
**Metal doors or metal shutters.
**Heat insulation including aluminium foil.
**Concrete walls or walls made of galvanized iron sheet.
**When using this unit on the different floor or house in the same grounds where the main monitor station has been installed.
**Multiple walls of any sort.
Operating near 2.4 GHz electrical appliances may cause interference. Move away from the electrical appliances.

Important:

- When you move the unit from a cold place to a warm place, wait a little while to let the unit adapt to the change in environment before connection or use. In this case, condensation such as the formation of dew may occur, resulting -in error or malfunction.

Installation:

- If there are no obstacles between this unit and the main monitor station, you can install the unit within about 100 m from the main monitor station.

Feature highlights

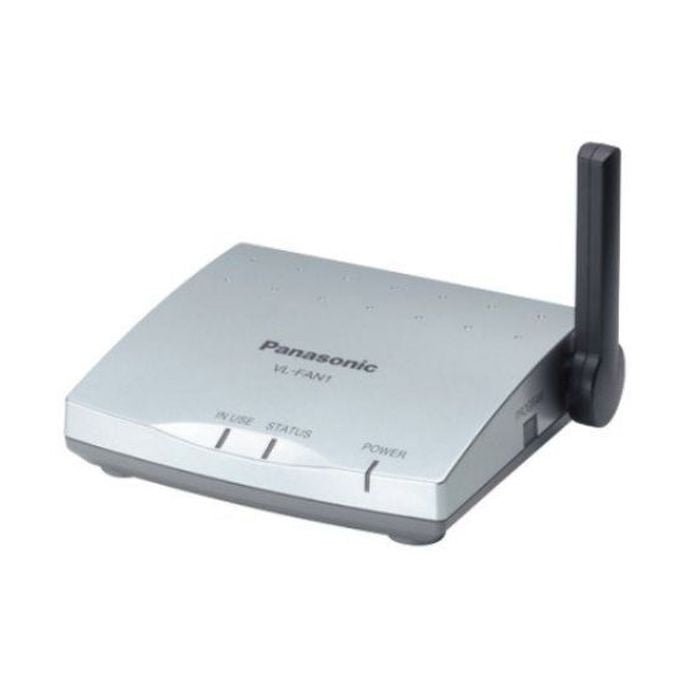

If the sub monitor station is away from the main monitor station or there are the following obstacles between them, the radio signal weakens. In this case, sound cuts in and out, and moreover "OUT OF RANGE" is displayed on the sub monitor station as it cannot be used. The repeater strengthens the radio wave signal and extends the range of use which may resolve these problems when it is installed between the main monitor station and the sub monitor station.

Possible obstacles:

- Metallic door or shutter
- Heat insulator including aluminium foil
- Concrete wall or wall made of galvanized iron sheet
- When using the sub monitor station on the different floor or house in the same grounds where the main monitor station has been installed.
- Multiple walls of any sort

Technical data about this product

Power supply: AC adaptor (100 - 240 V AC, 50/60 Hz) (12.0 V DC, 750 mA)
Current consumption:

- Standby: Approx. 0.05 A
- During operation: Approx. 0.08 A

Dimensions:

- Approx. height 27 mm x width 101 mm x depth 82 mm
- Approx. height 69.5 mm x width 101 mm x depth 82 mm (when raising the antenna)

Mass (Weight): Approx. 85 g
Operating environment: 0 Celcius to 40 Celcius, Up to 90% RH (Relative Humidity) non condensing
Frequency: 2.402 GHz - 2.481 GHz
