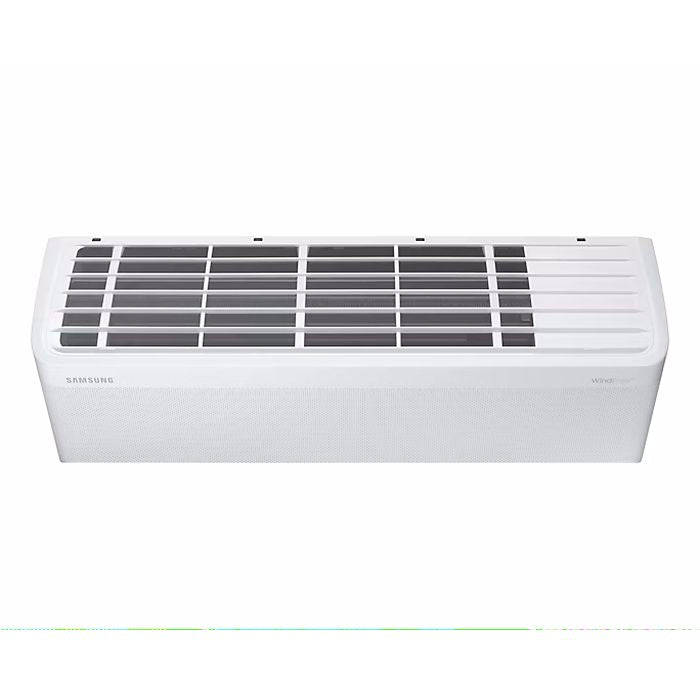

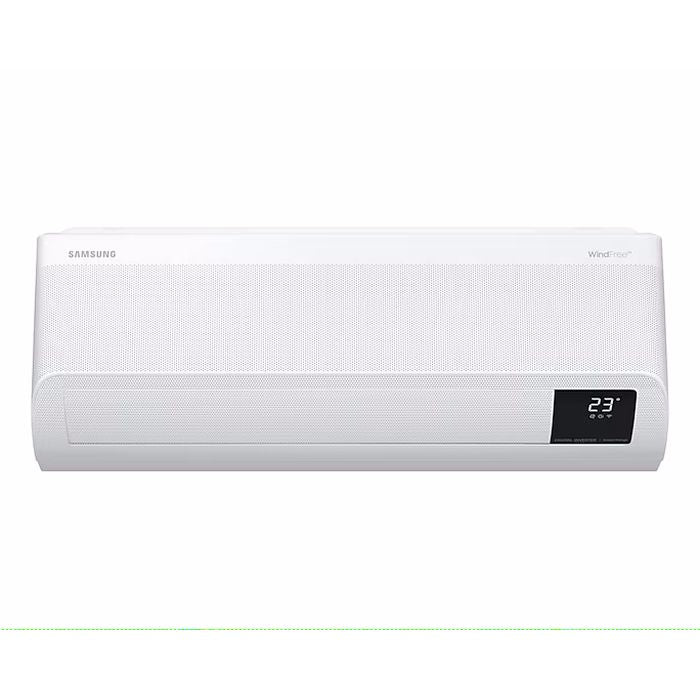

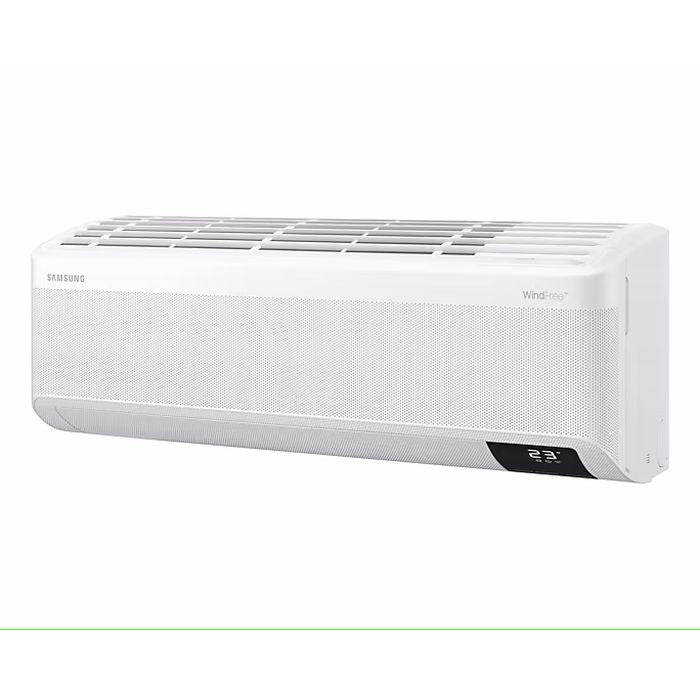

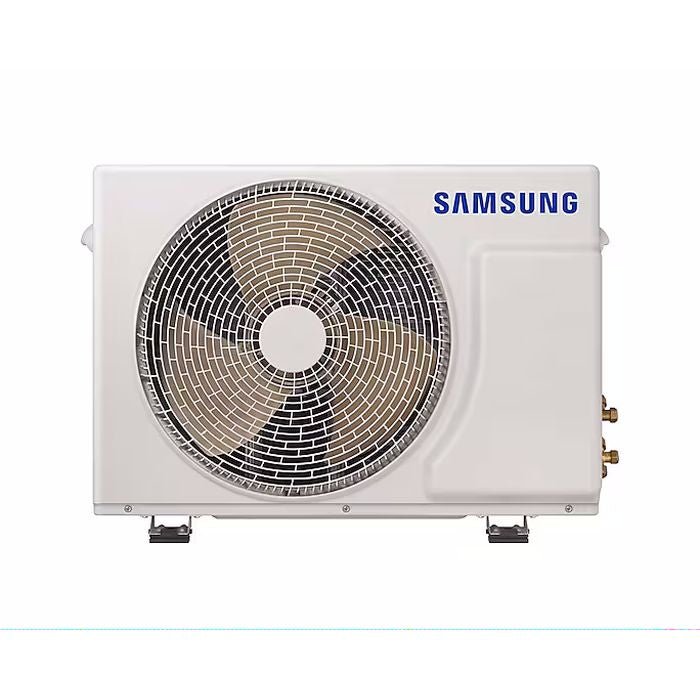

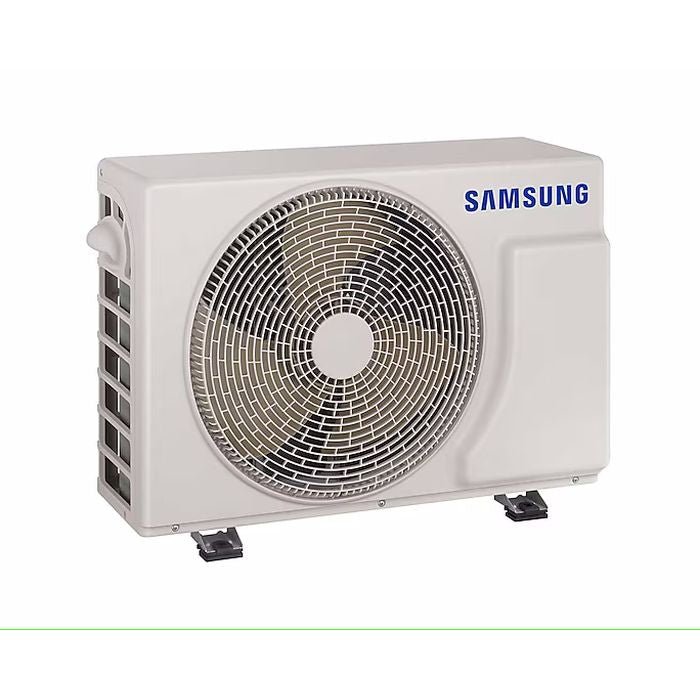

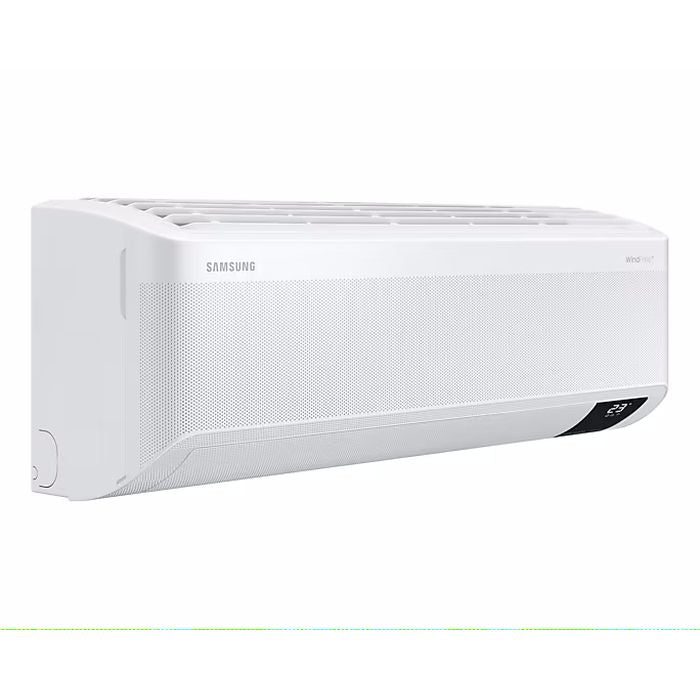

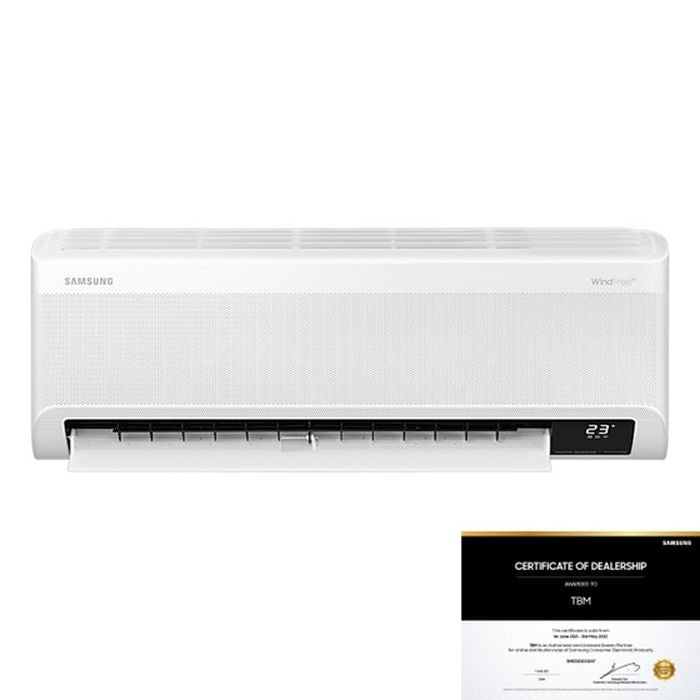

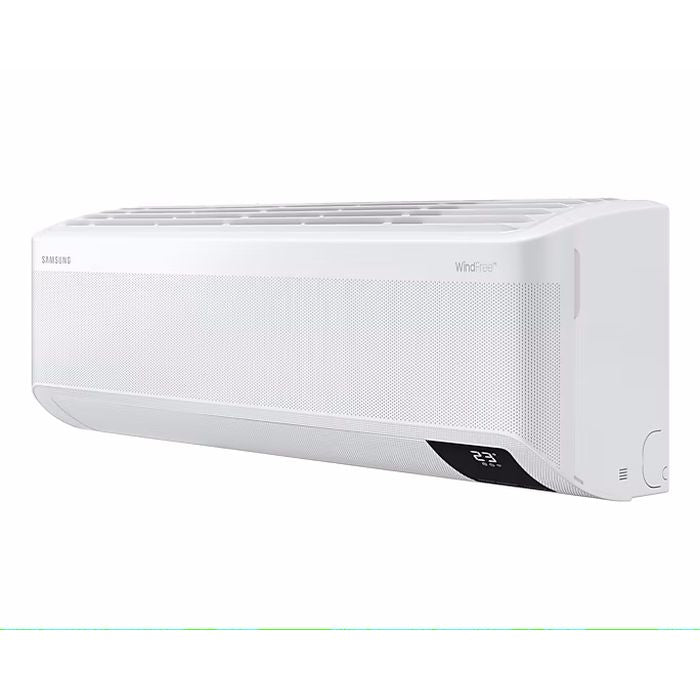

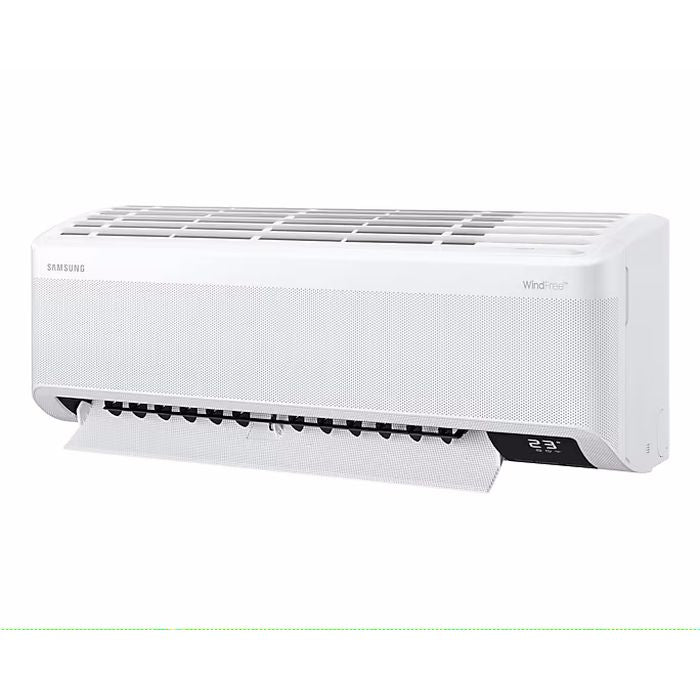

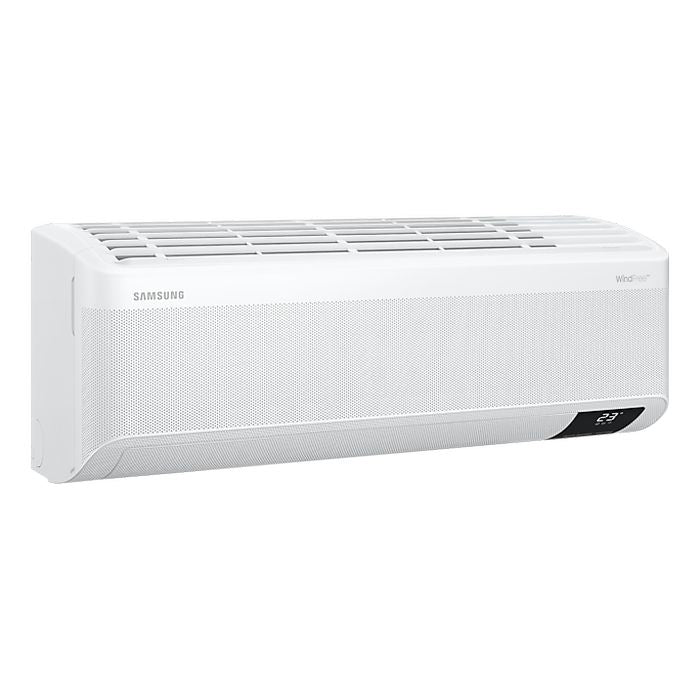

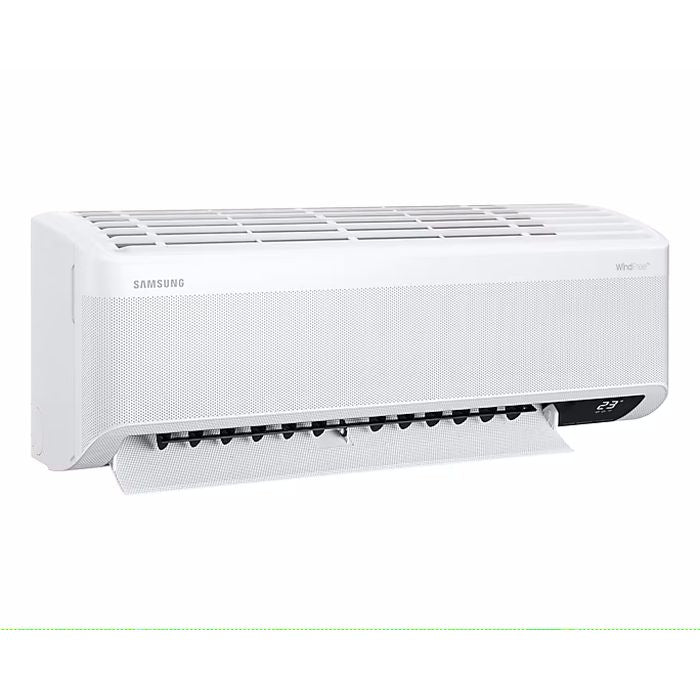

[1.0HP][Inverter] Samsung AR10BYFAMWKNME Air Conditioner 1.0HP Wind Free Wall Split Gas R32 S-Inverter

[1.0HP][Inverter] Samsung AR10BYFAMWKNME Air Conditioner 1.0HP Wind Free Wall Split Gas R32 S-Inverter

Regular price RM2,239.00 Sale price RM1,899.00 Save RM340
/
split into 3 payments of RM 633.00 per month

with

Shipping calculated at checkout.

1 Year General Warranty.

WindFree™ Deluxe , 1.0HP (2022)

F-AR1-0BYFAMWK

  • WindFree™ Cooling : Stay comfortably cool without feeling cold
  • SmartThings : Remotely control it anytime, anywhere
  • AI Auto Cooling : Enjoy a more intelligent way of living

Stay comfortably cool without feeling cold

WindFree™ Cooling

Stay comfortable cool with WindFree™ Cooling. It gently and quietly disperses air through 23,000 micro air holes, so there is no unpleasant feeling of cold wind on your skin. Its advanced airflow also cools a wider and larger area more evenly. And it uses 77% less energy than Fast Cooling***.

* ASHRAE (American Society of Heating, Refrigerating, and Air-Conditioning Engineers) defines “Still Air” as air currents at speeds below 0.15m/s which lacks the presence of cold drafts.** Tested on the AR12TXCAAWKNEU model. WindFree™ mode generates only 23dB of noise, compared to 26dB with the Samsung conventional model.*** Tested on the AR07T9170HA3 model, based on the power consumption of Fast Cooling mode vs. WindFree™ Cooling mode.

Reduces energy use by 77%* to save money

WindFree™ Cooling (Energy Saving)

Save money every day with highly energy-efficient WindFree™ Cooling. When operating in WindFree™ mode, the outdoor unit consumes minimal power – using up to 77% less electricity compared to the Fast Cooling mode*. So you can stay comfortably cool without worrying about your electricity bills

* Tested on the AR07T9170HA3 model, based on the power consumption of Fast Cooling mode vs. WindFree™ Cooling mode.

Enjoy a more intelligent way of living

AI Auto Cooling

Experience an intelligent way of living with AI Auto Cooling*. It automatically optimizes the various modes by analyzing the room conditions and usage patterns**. Based on your preferred temperature, it automatically switches to the most appropriate mode to maintain the optimal conditions.

* A Wi-Fi connection and a Samsung account are required.** Stores user data, preferences and usage patterns to suggest the most useful options.

Reduces noise and energy use by 73%*

Digital Inverter Boost

Save money every day with highly energy-efficient Digital Inverter Boost technology. It maintains the desired temperature with less fluctuation. It also has neodymium magnets and a Twin Tube Muffler, so it works efficiently, quietly and lasts much longer. And it reduces energy usage by up to 73%*.

* Tested on the AR09TXCAAWKNEU model compared with the Samsung conventional model AQ09TSLXEA.

Sleep much better throughout the night

WindFree™ Good Sleep

The WindFree™ Good Sleep mode creates the ideal climate for sleeping – without an unpleasant cold air flow. Its temperature control with WindFree™ Cooling helps you fall asleep fast, sleep deeply and comfortably, and wake up feeling fully refreshed.

Designed to cool faster, wider & farther

Fast Cooling

Cool rooms quickly from corner to corner, so you’re always comfortable. Digital Inverter Boost technology cools the air 43% faster*. Its advanced design also has a 15% larger fan, 18% wider inlet and a 31% wider blade. So cool air is dispersed farther and wider**, reaching up to 15 meters.

* Tested on the AR12TXCAAWKEU model compared with the Samsung conventional model AQ12EASER.** Tested on the AR24TXFCAWKNEU model.

Remotely control it anytime, anywhere

SmartThings

Control the temperature in your home anytime and anywhere. Using the SmartThings App* you can remotely control and monitor the air conditioner with just a touch. Or simply tell artificial intelligence (AI) system* what you want** and it does it. It even suggests the best settings.

* Available on Android and iOS devices. A Wi-Fi connection and a Samsung account are required.** Voice control supported in English (US, UK, Indian), Chinese, Korean, French, German, Italian and Spanish. Portuguese will also be supported by the end of 2019.

Simply cleans itself – automatically

Auto Clean (3 Steps)

Keep the inside of your air conditioner hygienic by doing nothing! After it has been working, the Auto Clean function automatically dries the Heat Exchanger using a 3-step process. It removes moisture by blowing air for between 10 to 30 minutes. So it prevents the build-up of bacteria and odors.

Enjoy a quieter & more tranquil home

Less Noise

Cool your living spaces with less noise, so it doesn’t disturb you. The compressor creates a powerful airflow, but works really quietly as it includes a Twin Tube Muffler. It reduces the refrigerant flow noise when operating at high speed and minimizes ambient noise during low speed operation.

* Based on testing conducted in an internal laboratory. Generates a 40% reduction in the 1kHz noise band, which is the weakest level of sound that humans are sensitive to.

Easy to clean anti-bacterial filter

Easy Filter Plus

Keep your air conditioner working efficiently with less effort. The Easy Filter Plus is located outside, on the top, so it can easily be taken out and cleaned. Its dense mesh keeps the Heat Exchanger clean and an anti-bacterial coating helps protect you against dangerous airborne contaminants*.

* Tested in Korea test lab. Data has been measured under specific testing conditions and may vary depending on environmental factors and individual use.

Better Heat Exchanger performance

DuraFin™

Enhance the performance and efficiency of the Heat Exchanger using the DuraFin. It is made of a much denser material and is thicker in design. Its improved coating also has more corrosion resistance. So it passes the accelerated Sea Water Acetic Acid Test (SWAAT) for corrosion over 100 days*.

* Based on the AR13TYHYBWKNST model compared with the Samsung conventional model AR18JRFNFWK.

Stable and durable in harsh conditions

Triple Protector Plus

Enjoy a long-lasting performance in challenging environments. Triple Protector Plus technology prevents damage from power surges and fluctuating electrical currents, without a separate voltage stabilizer*. Its anti-corrosion coating also protects the condenser and cabinet in harsh conditions.

* Tested on the AR12TXEAAWKNEU model compared with the Samsung conventional model AS18FCMID.

Environmentally friendly refrigerant

R32 Refrigerant

Protect the planet by reducing the impact of climate change. The air conditioner uses the next generation R32 refrigerant, which helps conserve the ozone layer and has a low impact on global warming compared to conventional R22 or R410A refrigerants. So it’s much more environmentally friendly*.

* Tested on R32 refrigerant compared with Samsung conventional refrigerants R410A and R22.

Wide airflow with 4way auto swing

4way Swing

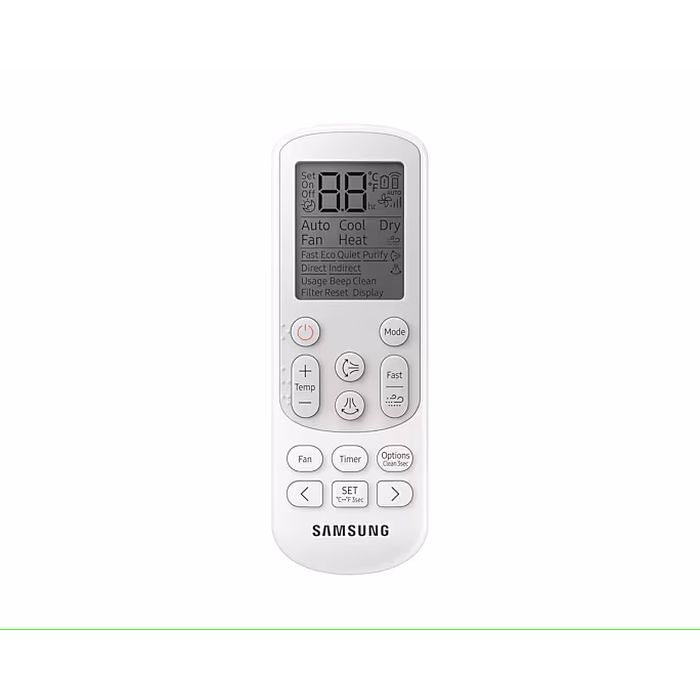

Control the wind direction Up/Down, Left/Right using remote controller. Control the wind to your desired location.

Wash out dirt & dust inside with a press

Freeze Wash

Maintain the optimum performance with the push of a button. Freeze Wash quickly freezes the Heat Exchanger and then defrosts the ice. So it is washed in water, which washes away dirt and 90% of microorganisms*. Finally, it dries up any moisture left. And it alerts you when it is time for a clean**.

* 1. Tested by intertek. Wash away 90% of the Staphylococcus aureus ATCC 6538 and Escherichia coli ATCC 8739 bacteria.2. Some Windfree model may not be able to use Freeze wah feature.)** Only available on certain models that have Wi-Fi connectivity

Specifications Detail

Capacity

  • Capacity (Cooling, Btu/hr): 10000 Btu/hr
  • Capacity (Cooling, Min - Max, Btu/hr): 4,500 ~ 12,000 Btu/hr
  • Capacity (Cooling, kW): 2.93 kW
  • Capacity (Cooling, Min - Max, kW): 1.32~ 3.52 kW

Energy Efficiency

  • EER (Cooling, W/W): 3.37 W/W
  • EER (Cooling, Btu/hW): 11.49 Btu/hW
  • CSPF: 5.00
  • Energy Efficiency Class for cooling (Grade): 4★

Noise Level

  • Noise Level (Indoor, High/Low, dBA): 37 / 21 dBA
  • Noise Level (Outdoor, High/Low, dBA): 49 dBA

Electrical Data

  • Power Source(Φ/V/Hz): 1 / 220-240 / 50
  • Power Consumption(Cooling, W): 870 W
  • Operating Current(Cooling, A): 6.5 A

Physical specification

  • Gross Dimension (Indoor, WxHxD): 880*290*375 mm
  • Gross Dimension (Outdoor, WxHxD): 778*550*331 mm
  • Net Dimension (Indoor, WxHxD): 820*299*215 mm
  • Net Dimension (Outdoor, WxHxD): 660*475*242 mm
  • Gross Weight (Indoor, kg): 10.5 kg
  • Gross Weight (Outdoor, kg): 20.8 kg
  • Net Weight (Indoor, kg): 9.2 kg
  • Net Weight (Outdoor, kg): 19.1 kg
  • Loading Quantity (20/40/40Hft without Pipe): 120 / 248 / 280

Technical Information

  • Piping Length (Max, m): 15 m
  • Piping Height (Max, m): 7 m
  • SVC Valve (Liquid (ODxL)): 6.35
  • SVC Valve (Gas (ODxL)): 9.52
  • Moisture Removal (l/hr): 1.0 l/hr
  • Air Circulation (Cooling, ㎥/min): 10.7 ㎥/min
  • Refrigerant (Type): R32
  • Refrigerant (Charging, kg): 0.5 kg
  • Refrigerant (Charging, tCO2e): 0.34 tCO2e
  • Low Ambient (Cooling, ℃): 16~46 ℃
  • Outdoor Unit (Compressor Type): BLDC
  • Outdoor Unit (Anti-Corrosion Fin): Yes

Air Flow

  • WindFree Cooling: Yes
  • Air Direction Control (Up/Down): Auto
  • Air Direction Control (Left/Right): Auto
  • Air Flow Control Step (Cool/Fan): 5/4

Air Purification

  • PM 1.0 Filter: No
  • Tri Care Filter: No
  • Easy Filter Plus (Anti-Bacteria): Yes
  • Auto Clean (Self Cleaning): Yes

Convenience

  • SmartThings: Yes
  • AI Auto Cooling: Yes
  • Motion Detect Sensor: No
  • Freeze Wash: No
  • Filter Cleaning Indicatior: Yes
  • Indoor Temp. Display: Yes
  • Display On/Off: Yes
  • Beep On/Off: Yes
  • 24-Hour Timer: Yes
  • Auto Changeover: No
  • Auto Restart: Yes

Operating Mode

  • Auto Mode: Yes
  • Fast Cool: Yes
  • Good Sleep: Yes
  • Eco Mode: Yes
  • Dehumidification: Yes
  • Fan Mode: Yes
  • Quiet: Yes

Smart

  • WiFi Embedded: Yes
